(55.024.AH[01]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL VALVE, SOLENOID

Запчасти Case IH MAXXUM 135 (55.024.AH[01]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL VALVE, SOLENOID (55) - ELECTRICAL SYSTEMS

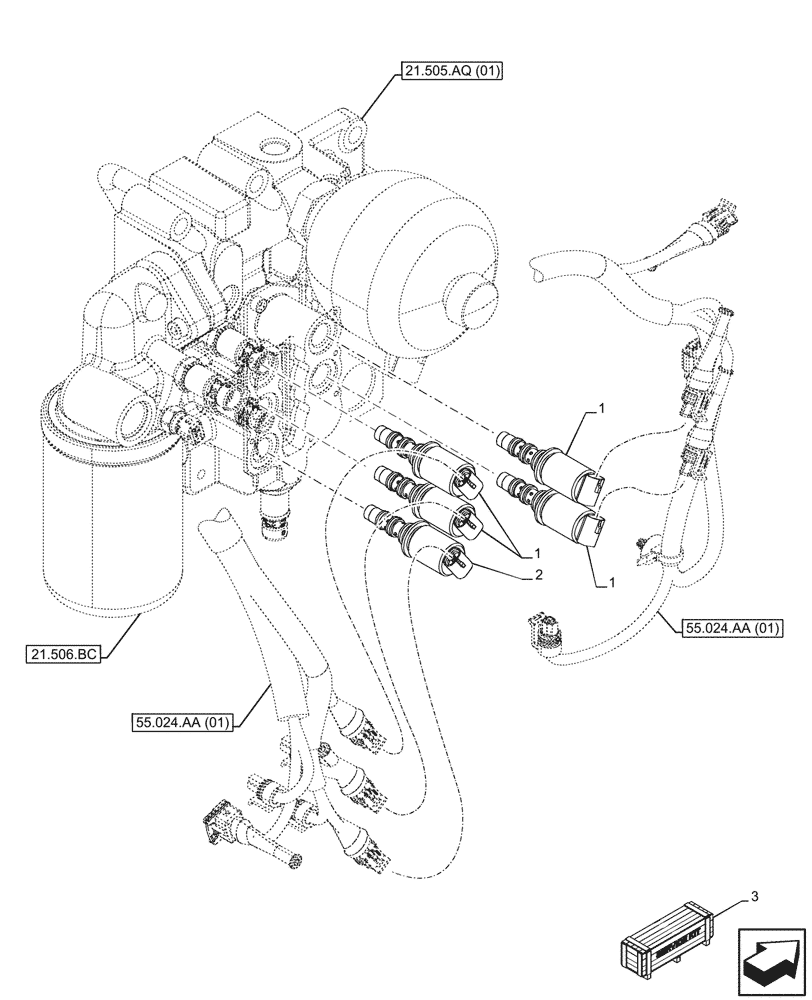

Схема запчастей Case IH MAXXUM 135 - (55.024.AH[01]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL VALVE, SOLENOID (55) - ELECTRICAL SYSTEMS
21.506.bc
1
1
3
2
1
55.024.aa (01)
55.024.aa (01)
21.505.aq (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87739558

SOLENOID VALVE,14W

4шт.

1

87739558R

REMAN-SOLENOID

4шт.

1

87739558C

CORE-SOLENOID

Return Number

4шт.

2

87472229

CARTRIDGE

1шт.

3

47798576

GEARBOX

Transmission ASSY, Incl 1 - 2

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.

Выбрано товаров: 6
