(55.022.AB) - VAR - 396247, 758442, 758549 - TRANSMISSION, TEMPERATURE SWITCH

Запчасти Case IH MAXXUM 135 (55.022.AB) - VAR - 396247, 758442, 758549 - TRANSMISSION, TEMPERATURE SWITCH (55) - ELECTRICAL SYSTEMS

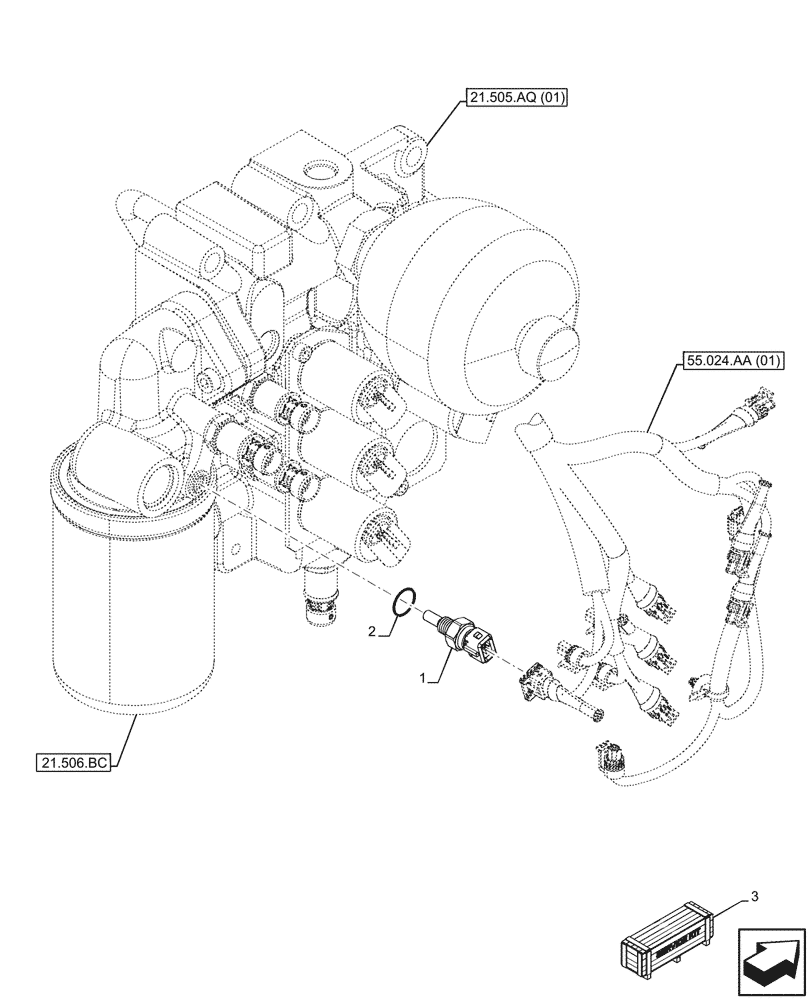

Схема запчастей Case IH MAXXUM 135 - (55.022.AB) - VAR - 396247, 758442, 758549 - TRANSMISSION, TEMPERATURE SWITCH (55) - ELECTRICAL SYSTEMS
21.506.bc
1
3
2
55.024.aa (01)
21.505.aq (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87484581

SENSOR

Transmission, Temperature, Years: -09-APR-16

1шт.

1

47815991

TEMPERATURE SENDER

, Start Year: 10-APR-16

1шт.

2

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

3

47798576

GEARBOX

Transmission ASSY, Incl 1 - 2

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.

Выбрано товаров: 5
