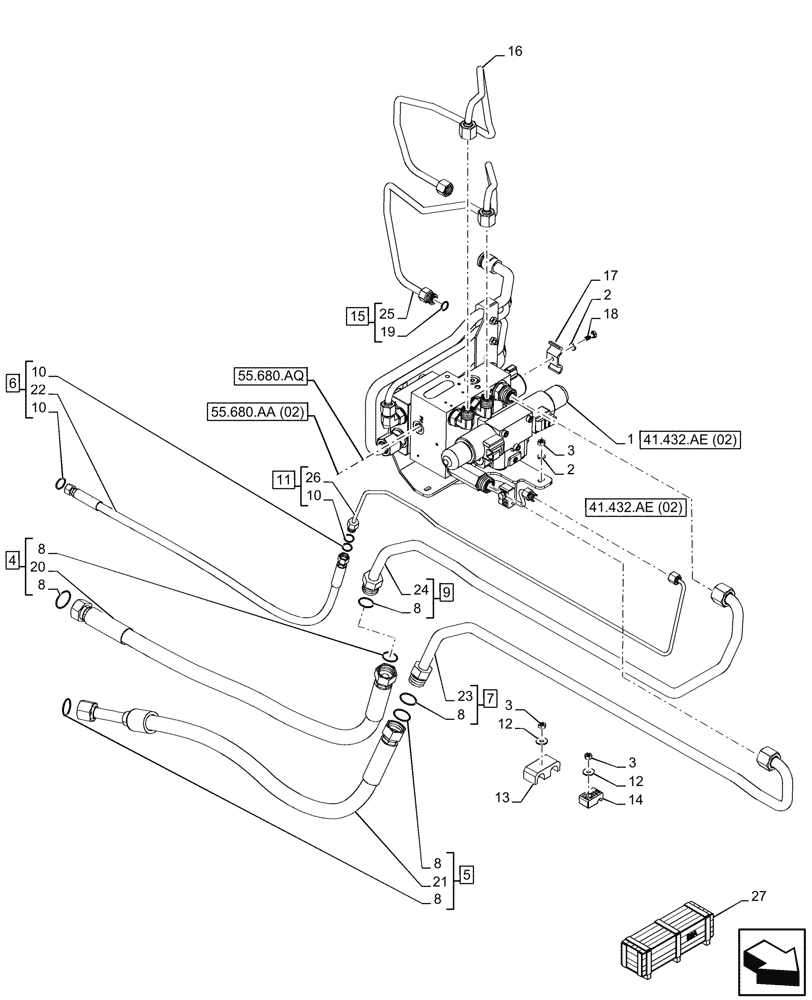

Запчасти Case IH MAXXUM 135 (41.432.AE[01]) - VAR - 743812 - AUTOGUIDANCE, VALVE (41) - STEERING

1

47748474

VALVE

ASSY

1шт.

2

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

3

9706755

NUT,M6, Cl 8

5шт.

4

47618740

HYDRAULIC HOSE,16mm ID x 870mm L

ASSY, Steering Supply, 16mm ID x 870mm, Incl 8 (Qty 2), 20

1шт.

5

47823832

HOSE,16mm ID x 8000mm L

ASSY, Steering Return, 16mm ID x 8000mm, Incl 8 (Qty 2), 21

1шт.

6

47618750

HYDRAULIC HOSE,6.3mm ID x 890mm L

ASSY, LS Steering, 6.3mm ID x 890mm, Incl 10 (Qty 2), 22

1шт.

7

47823830

PIPE

ASSY, Autoguidance Line, Incl 8 (Qty 1), 23

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

9

47618738

PIPE

ASSY, Autoguidance Line, Incl 8 (Qty 1), 24

1шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

11

47725595

PIPE

ASSY, Autoguidance Line, Incl 10 (Qty 1), 26

1шт.

12

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

13

87608306

CLAMP BRACKET

1шт.

14

47517275

CLAMP BRACKET

1шт.

15

47725585

PIPE

ASSY, Autoguidance Line on Valve, Incl 19, 25

1шт.

16

47725587

PIPE

Autoguidance L Line on Valve

1шт.

17

4999554

CLAMP,2 Hoses

1шт.

18

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Pipe, Incl in 4

1шт.

21

NSS

NOT SOLD SEPARAT

Pipe, Incl in 5

1шт.

22

NSS

NOT SOLD SEPARAT

Pipe, Incl in 6

1шт.

23

NSS

NOT SOLD SEPARAT

Pipe, Incl in 7

1шт.

24

NSS

NOT SOLD SEPARAT

Pipe, Incl in 9

1шт.

25

NSS

NOT SOLD SEPARAT

Pipe, Incl in 15

1шт.

26

NSS

NOT SOLD SEPARAT

Pipe, Incl in 11

1шт.

27

718083024

DIA KIT, TRACTOR

Autoguidance System Cvt Cl 3 Axle, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

718084024

DIA KIT, TRACTOR

Autoguidance System Cvt Cl 3.5 Axle, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
