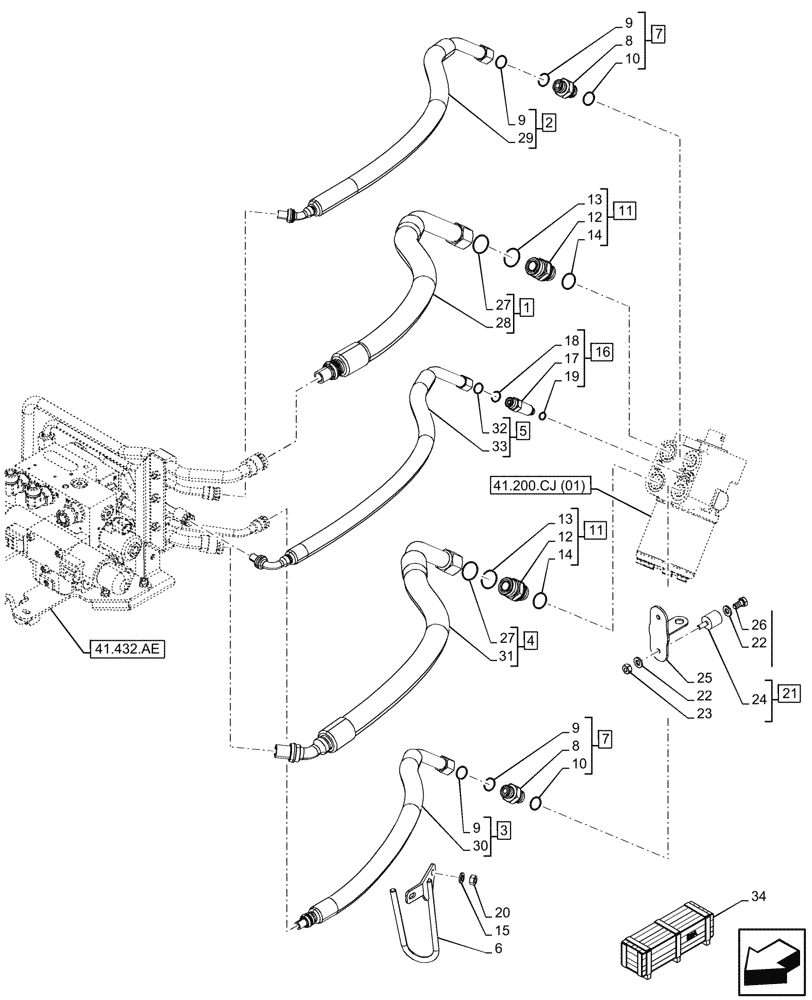

Запчасти Case IH MAXXUM 135 (41.432.AC) - VAR - 718083, 718084, 743812 - AUTOGUIDANCE, VALVE, LINES (41) - STEERING

1

47716777

HYDRAULIC HOSE,16mm ID x 720mm L

ASSY, Autoguidance Line, 16mm ID x 720mm, Incl 27 (Qty 1), 28

1шт.

2

47716776

HYDRAULIC HOSE,10mm ID x 725mm L

ASSY, Autoguidance Line, 10mm ID x 725mm, Incl 9 (Qty 1), 29

1шт.

3

47716775

HYDRAULIC HOSE,10mm ID x 640mm L

ASSY, Autoguidance Line, 10mm ID x 640mm, Incl 9 (Qty 1), 30

1шт.

4

47716774

HOSE,16mm ID x 730mm L

ASSY, Autoguidance Line, 16mm ID x 730mm, Incl 27 (Qty 1), 31

1шт.

5

47716778

HYDRAULIC HOSE,6.3mm ID x 720mm L

ASSY, Autoguidance Line, 6.3mm ID x 720mm, Incl 32, 33

1шт.

6

47783621

BRACKET

1шт.

7

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

ASSY, Incl 8 (Qty 1), 9 (Qty 1), 10 (Qty 1)

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

10

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

11

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 12 (Qty 1), 13 (Qty 1), 14 (Qty 1)

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

2шт.

13

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

87480170

HYD CONNECTOR,9/16" - 18 ORFS x M10 x 1 ORB

ASSY, Incl 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

1шт.

18

3416158

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

19

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

20

9706755

NUT,M6, Cl 8

2шт.

21

47744362

BRACKET

ASSY, Incl 22 (Qty 2), 23 - 25

1шт.

22

14496404

WASHER,M6 x 12 x 2 Thk

4шт.

23

86625072

NUT,Hex, M6, Cl 10

2шт.

24

84485006

SHOCK ABSORBER

2шт.

25

NSS

NOT SOLD SEPARAT

Bracket, Incl in 21

1шт.

26

87391924

BOLT,Hex, M6 - 1 x 12mm, FULL, SST

2шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

28

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

1шт.

30

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

31

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

32

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

33

NSS

NOT SOLD SEPARAT

Hose, Incl in 5

1шт.

34

718083024

DIA KIT, TRACTOR

Autoguidance System Cvt Cl 3 Axle, Incl 1 - 33

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

34

718084024

DIA KIT, TRACTOR

Autoguidance System Cvt Cl 3.5 Axle, Incl 1 - 33

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
