Запчасти Case IH MAXXUM 135 (41.216.AN[03]) - VAR - 758423 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING CYLINDER (41) - STEERING

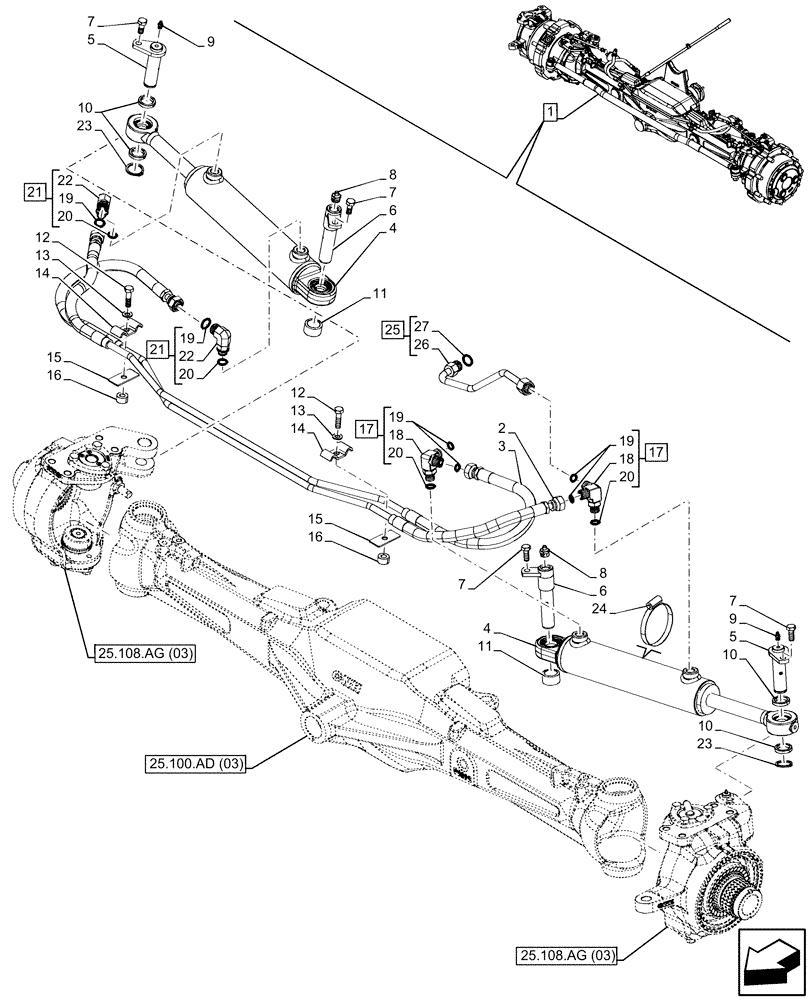

Схема запчастей Case IH MAXXUM 135 - (41.216.AN[03]) - VAR - 758423 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING CYLINDER (41) - STEERING
25.108.ag (03)
20
4
21
6
19
11
17
9
13
8
4
13
25
7
3
23
8
12
16
20
10
22
15
19
7
5
6
12
14
9
20
7
22
24
10
10
23
20
27
17
11
15
18
21
16
2
26
19
1
7
19
5
18
14
25.100.ad (03)
25.108.ag (03)

Артикул

Название

Примечание

Количество

1

84181155

LIVE FRONT AXLE

ASSY, Incl 2 - 27

1шт.

See also Axle Components in Figure 25.100.AA (03), 25.100.AD (03), 25.108.AA (03), 25.108.AG (03), 25.108.AN (03), 33.204.AD (01), 33.204.AD (02), 55.047.AA (03)

1шт.

2

5188440

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

Right Steering

1шт.

3

5188439

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

Left Steering

1шт.

4

47582858

STEERING CYLINDER

2шт.

5

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

6

5142048

PIN,19.98mm x 107.00mm

2шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

9

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

10

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

11

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

2шт.

12

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

14

5188504

BRACKET

2шт.

15

5188503

BRACKET

2шт.

16

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

17

5188443

90 ELBOW

ASSY, Incl 18, 19 (Qty 2), 20 (Qty 1)

2шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

2шт.

19

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.

20

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

21

47127165

90 ELBOW

ASSY, Incl 19 (Qty 1), 20 (Qty 1), 22

2шт.

22

NSS

NOT SOLD SEPARAT

Elbow, Incl in 21

2шт.

23

11066876

SNAP RING,M20, Ext

2шт.

24

13000990

COLLAR,60mm - 80mm, Worm Gear

80mm

1шт.

25

87517475

HYD TUBE,10.00mm OD x 228.00mm, 50.00mm L

ASSY, Steering Cylinder, LH, Incl 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

Tube, Incl in 25

1шт.

27

14452980

O-RING,9.25mm ID x 1.78" Width

1шт.

Выбрано товаров: 28
