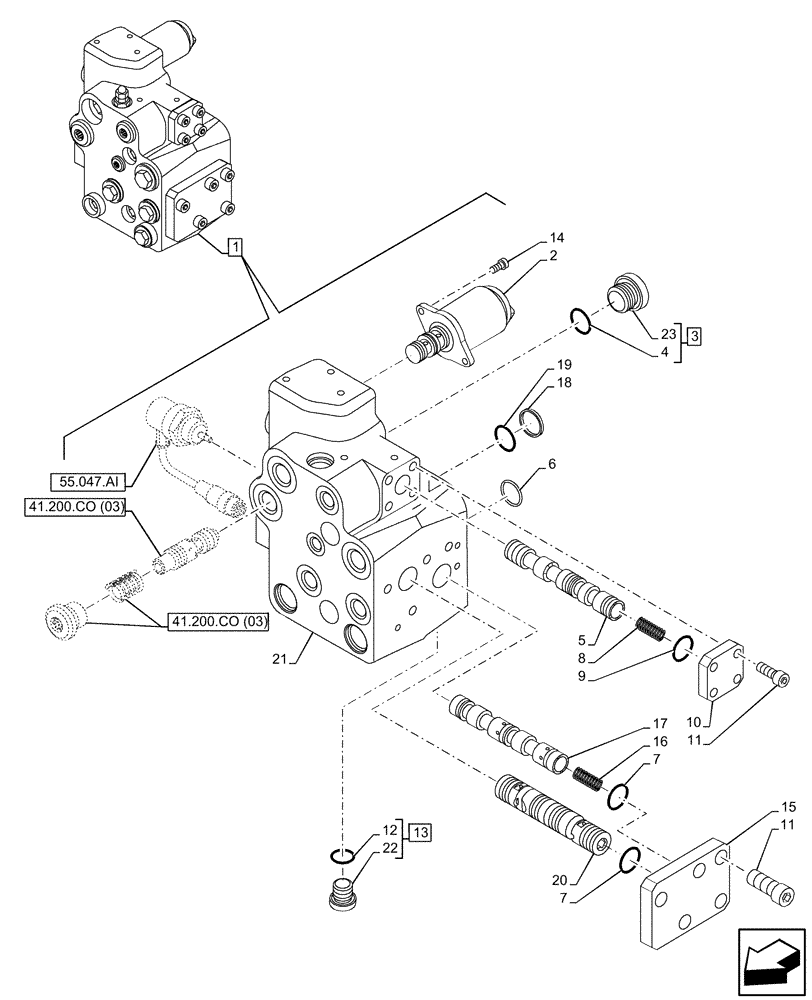

Запчасти Case IH MAXXUM 135 (41.200.CO[02]) - VAR - 743723 - STEERING VALVE, W/ FAST STEER™ SYSTEM, COMPONENTS (41) - STEERING

1

87589947

HYDRAULIC VALVE

ASSY, Incl 2 - 23

1шт.

2

47128861

SOLENOID VALVE

1шт.

3

47128844

PLUG

ASSY, Incl 4, 23

1шт.

4

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

5

87387085

SPOOL

1шт.

6

87705324

SEAL

1шт.

7

14453681

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

2шт.

8

47128854

SPRING

1шт.

9

14453581

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

10

47128846

FLANGE

1шт.

11

14305773

SCREW,M6 x 14mm

9шт.

12

47129249

O-RING,0.362" ID x 0.568" OD x 0.103"

2шт.

13

47128842

PLUG,M12 x 1.5 x 17mm, w/Seal

ASSY, Incl 12, 22

1шт.

14

14504073

SCREW,M5 x 10mm

2шт.

15

47128847

FLANGE

1шт.

16

47128853

SPRING

1шт.

17

47128838

SPOOL

1шт.

18

47136168

BACK-UP RING

4шт.

19

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

4шт.

20

87471332

SPOOL

1шт.

21

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 13

1шт.

23

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.
