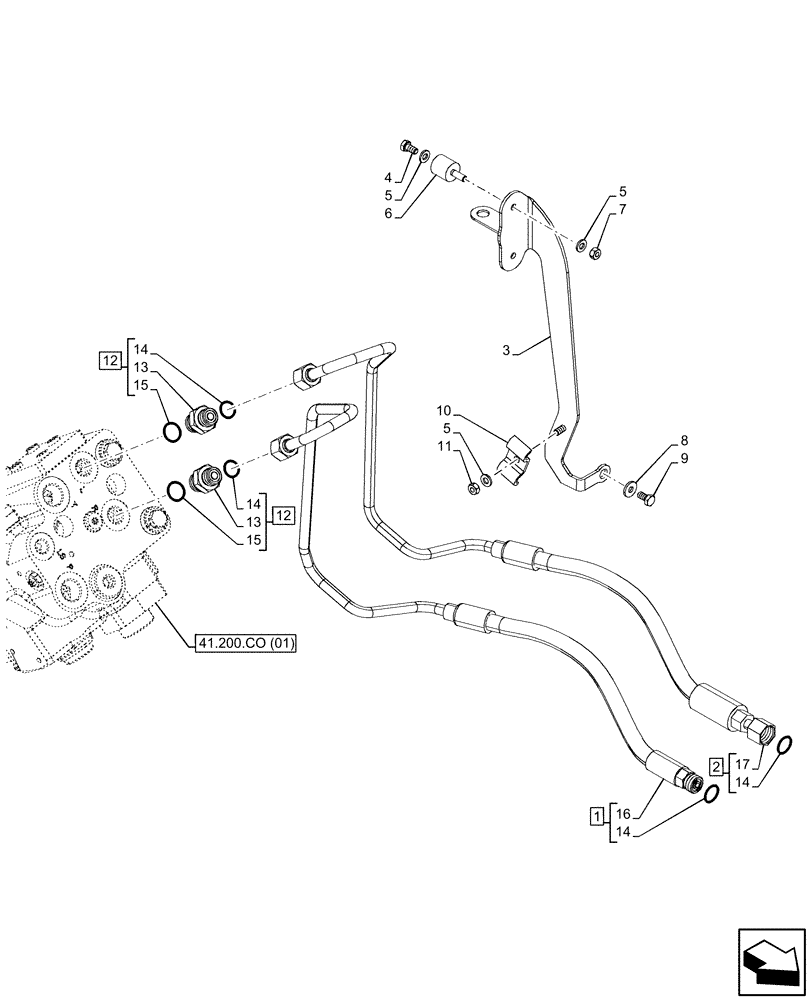

Запчасти Case IH MAXXUM 135 (41.200.AO[04]) - VAR - 743723 - HYDRAULIC STEERING, LINE (41) - STEERING

1

47749254

PIPE

ASSY, LS Steering, Incl 14 (Qty 1), 16

1шт.

2

47749252

PIPE

ASSY, Steering Right Faststeer, Incl 14 (Qty 1), 17

1шт.

3

47611818

BRACKET

1шт.

4

87391924

BOLT,Hex, M6 - 1 x 12mm, FULL, SST

2шт.

5

14496404

WASHER,M6 x 12 x 2 Thk

5шт.

6

84485006

SHOCK ABSORBER

2шт.

7

86625072

NUT,Hex, M6, Cl 10

2шт.

8

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

9

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

10

4999554

CLAMP,2 Hoses

1шт.

11

15896211

NUT,M6, Cl 8

1шт.

12

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 13 (Qty 1), 14 (Qty 1), 15 (Qty 1)

2шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

15

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

16

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.
