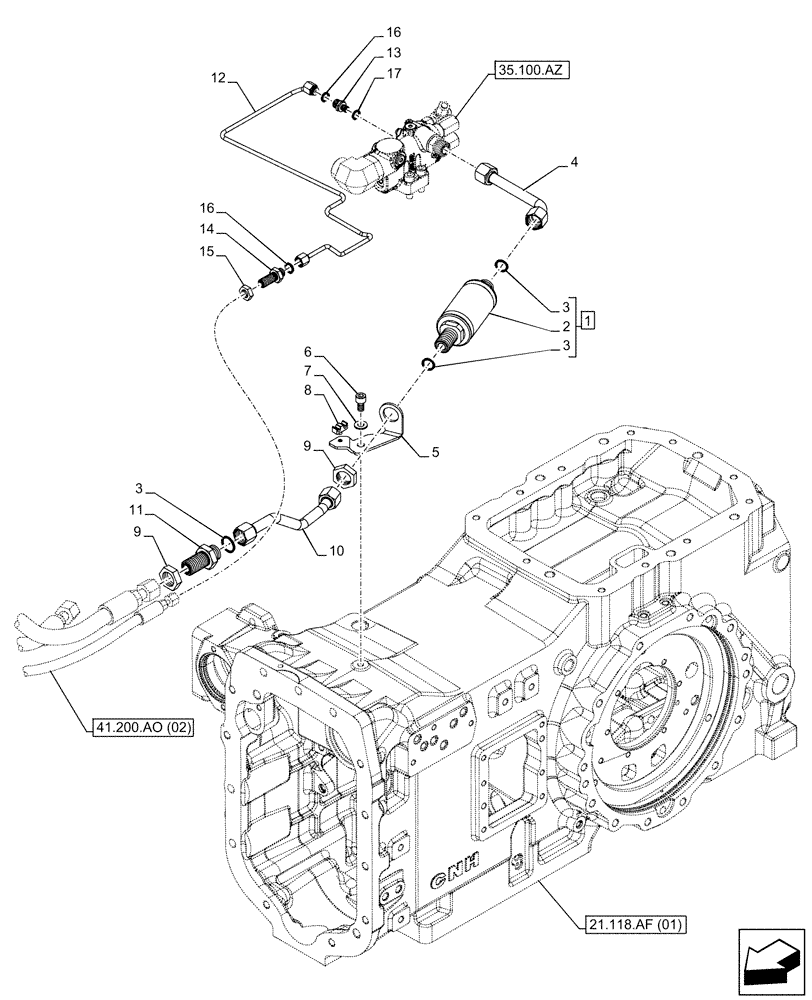

Запчасти Case IH MAXXUM 135 (41.200.AL[01]) - VAR - 391223, 758538, 758539 - HYDRAULIC STEERING, OIL FILTER (41) - STEERING

1

47549546

FILTER, DEF

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Filter, Incl in 1

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

4

47549541

PIPE

From Priority Valve To Filter

1шт.

5

47549545

BRACKET

1шт.

6

14362124

SCREW,M10 x 8mm, Cl 8.8

1шт.

7

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

8

14581180

SPRING CLIP,2x6.3mm OD x 37mm L

1шт.

9

86639085

BHD LOCK NUT,1"-14, Bulkhead

2шт.

10

47549543

TUBE

From Filter to Steering

1шт.

11

86978771

UNION,16mm L

1шт.

12

47431145

PIPE

From Steering to Priority Valve

1шт.

13

87016907

HYD CONNECTOR,9/16"-18 ORFS x M10 x 1 ORB

1шт.

14

86639059

UNION,9/16"-18 ORFS, Blkd

1шт.

15

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

16

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.
