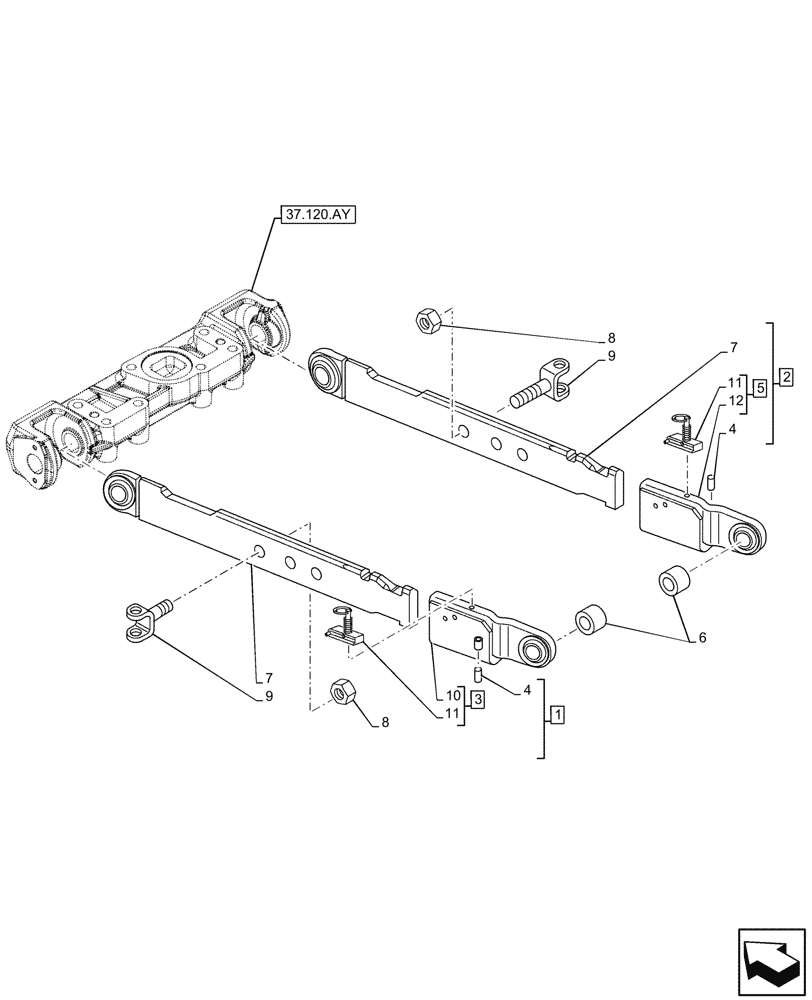

Запчасти Case IH MAXXUM 135 (37.120.AO[04]) - VAR - 758452 - 3 POINT HITCH, REAR, LOWER LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47137087

LOWER LINK

ASSY, LH, Incl 3, 4 (Qty 1), 7 (Qty 1), 8 (Qty 1), 9 (Qty 1), 10, 11 (Qty 1)

1шт.

2

47137086

LOWER LINK

ASSY, RH, Incl 4 (Qty 1), 5, 7 (Qty 1), 8 (Qty 1), 9 (Qty 1), 11 (Qty 1), 12

1шт.

3

47137518

LIFT LINK END ASSY

ASSY, LH, Incl 10, 11 (Qty 1)

1шт.

4

47125841

ROLL PIN,13mm OD x 55mm L

13 x 55

2шт.

5

47137517

LIFT LINK END ASSY

ASSY, RH, Incl 11 (Qty 1), 12

1шт.

6

47123096

BUSHING,28.7mm ID x 37mm OD x 45mm L

2шт.

7

NSS

NOT SOLD SEPARAT

Lower Link Body, Incl in 1 and Incl in 2

2шт.

8

12164511

NUT,M24 x 2, Cl 8

2шт.

9

5190955

YOKE,M24 x 2

2шт.

10

NSS

NOT SOLD SEPARAT

Flex End, Incl in 3

1шт.

11

87627686

KIT

Lower Link

2шт.

12

NSS

NOT SOLD SEPARAT

Flex End, Incl in 5

1шт.
