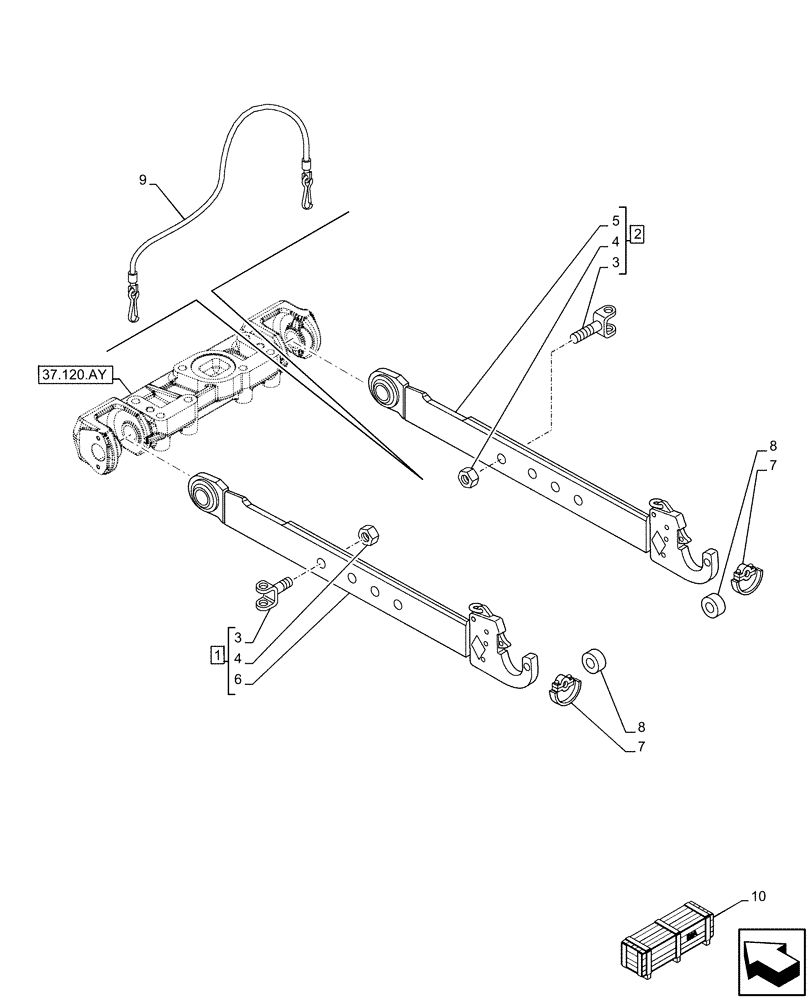

Запчасти Case IH MAXXUM 135 (37.120.AO[01]) - VAR - 390923, 758454 - 3 POINT HITCH, REAR, LOWER LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47125179

LIFT LINK

ASSY, LH, Incl 3 (Qty 1), 4 (Qty 1), 6

1шт.

2

47125178

LIFT LINK

ASSY, RH, Incl 3 (Qty 1), 4 (Qty 1), 5

1шт.

3

5190955

YOKE,M24 x 2

2шт.

4

12164511

NUT,M24 x 2, Cl 8

2шт.

5

NSS

NOT SOLD SEPARAT

Lower Link, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Lower Link, Incl in 1

1шт.

7

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

Shaft Diameter 29.00mm

2шт.

7

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

Shaft Diameter 37.00mm

2шт.

8

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

2шт.

8

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

2шт.

9

5116063

ROPE,4500mm L

1шт.

10

719790034

DIA KIT, TRACTOR

Hydraulic Adjust Top Link, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
