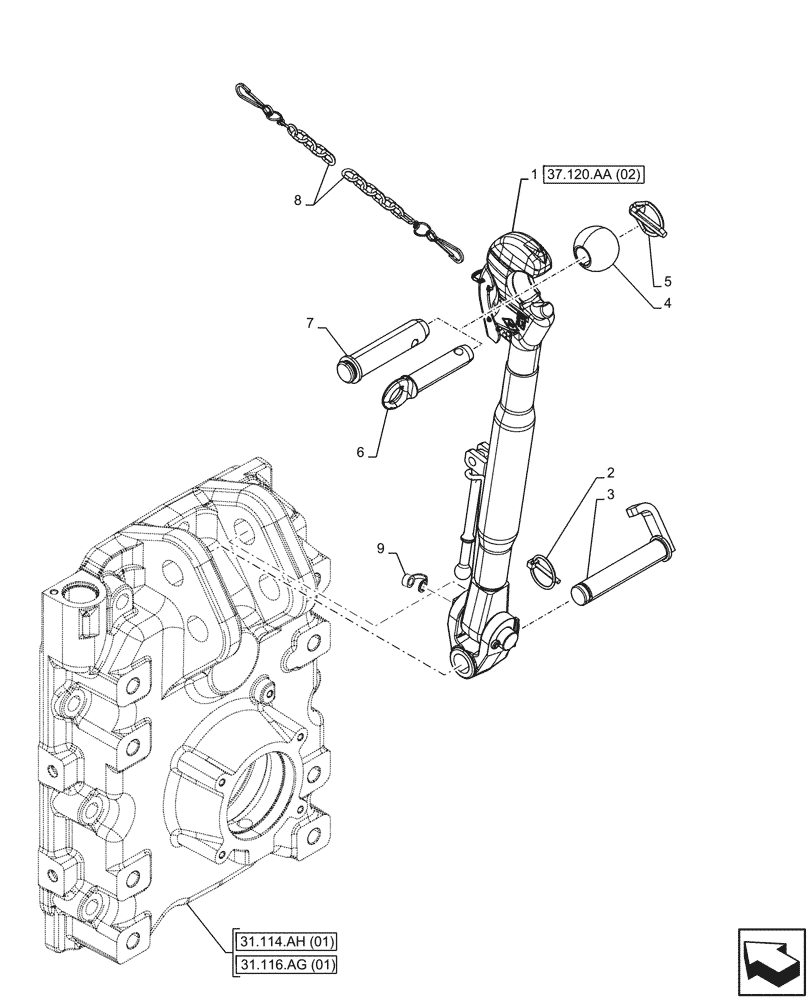

Запчасти Case IH MAXXUM 135 (37.120.AA[01]) - VAR - 390923 - 3 POINT HITCH, REAR, TOP LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84517031

UPPER LINK

ASSY

1шт.

2

82014909

LOCK PIN,5.5mm OD

1шт.

3

5191449

PIN,27.9mm OD x 152mm L

1шт.

4

5116059

BUSHING,25.4mm ID x 60mm OD x 51mm L

1шт.

4

5116060

BUSHING,32mm ID x 60mm OD x 51mm L

32.00mm ID x 60.00mm OD x 41.00mm

1шт.

5

5166585

LOCK PIN,11mm OD

1шт.

6

822483

PIN,25.5mm OD x 137mm L

25.50mm OD

1шт.

7

44015196

PIN,31.75mm OD x 146mm L

1шт.

8

5174402

LINK CHAIN,1500mm L

1шт.

9

47983406

PLUG,Greasing point protection,

1шт.
