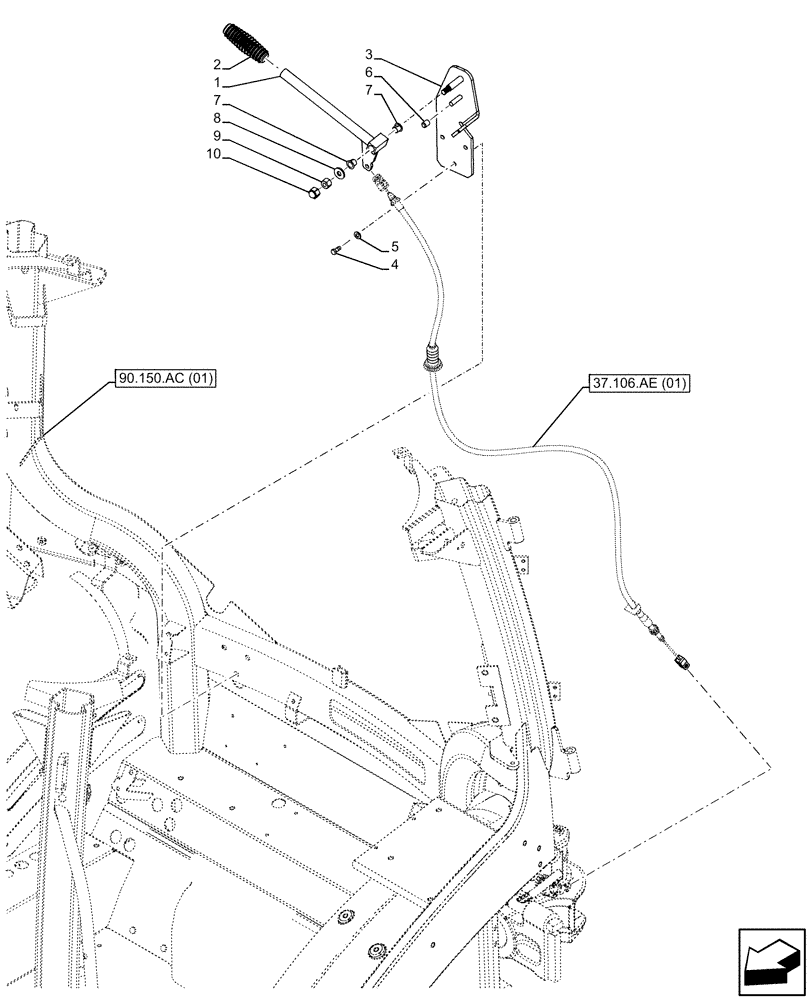

Запчасти Case IH MAXXUM 135 (37.106.AG[01]) - VAR - 758458, 758459, 758460 - AUTOMATIC HITCH, TIE-ROD, HANDLE (GERMANY) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87665892

LEVER

1шт.

2

87666034

HANDLE GRIP

1шт.

3

47439526

BRACKET

1шт.

4

81872099

SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8

3шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

87330878

CAP,9.50mm ID x 13.30

1шт.

7

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

8

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

9

12574511

LOCK NUT,M10 x 1.25, Cl 8

1шт.

10

82012814

CAP,M10

1шт.
