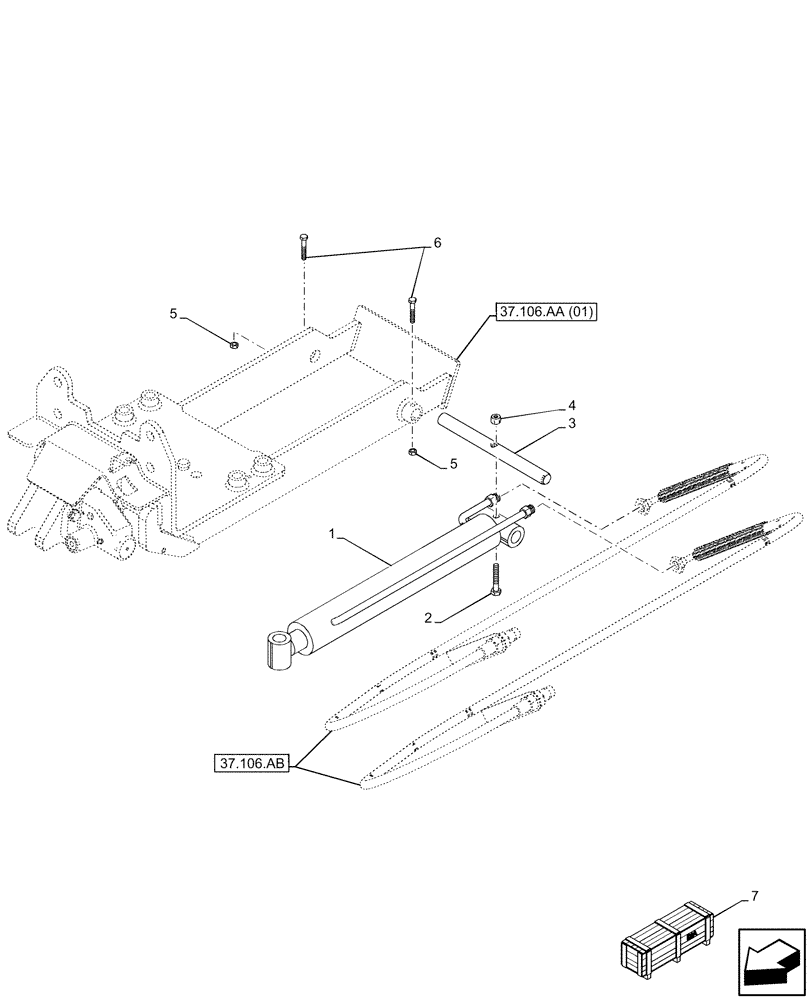

Запчасти Case IH MAXXUM 135 (37.106.AD ) - VAR - 758465 - AUTOMATIC HITCH, CYLINDER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

82036196

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 390mm Stroke

1шт.

2

11107431

SCREW,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

3

82036622

PIN,25mm OD x 287mm L

1шт.

4

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

1шт.

5

16104131

NUT,Hex, M8, 1.25mm Pitch

2шт.

6

16040731

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9, Full Thd

2шт.

7

710086024

DIA KIT, TRACTOR

Hydraulic Push Back Hitch (EDC - 80mm External Rams), Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
