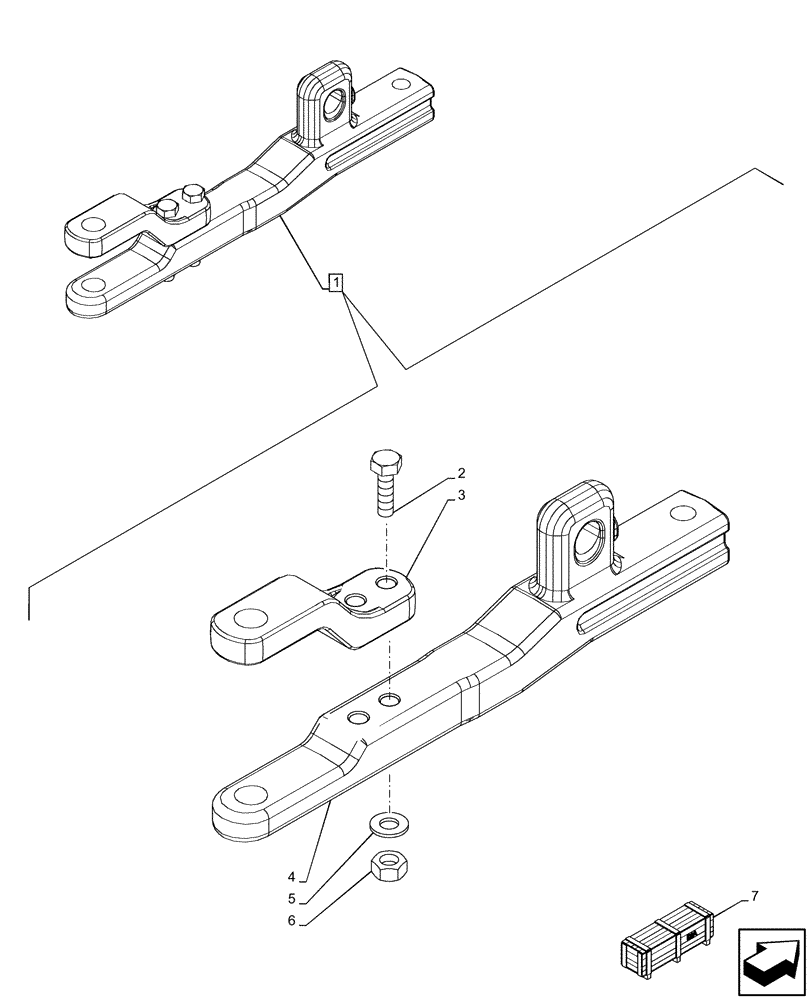

Запчасти Case IH MAXXUM 135 (37.106.AA [02]) - VAR - 758465 - AUTOMATIC HITCH, TOW HOOK, HYDRAULIC, DRAWBAR, COMPONENTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47403751

DRAWBAR

ASSY, Incl 2 - 6

1шт.

2

15985434

BOLT,M18 x 1.5 x 110mm

2шт.

3

82036534

BAR,251mm L x 60mm W x 30mm Thk, 50.8mm Offset

1шт.

4

NSS

NOT SOLD SEPARAT

Drawbar, Incl in 1

1шт.

5

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

2шт.

6

10721034

NUT,M18 x 1.5

M18 x 1.5

2шт.

7

710086024

DIA KIT, TRACTOR

Hydraulic Push Back Hitch (EDC - 80mm External Rams), Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
