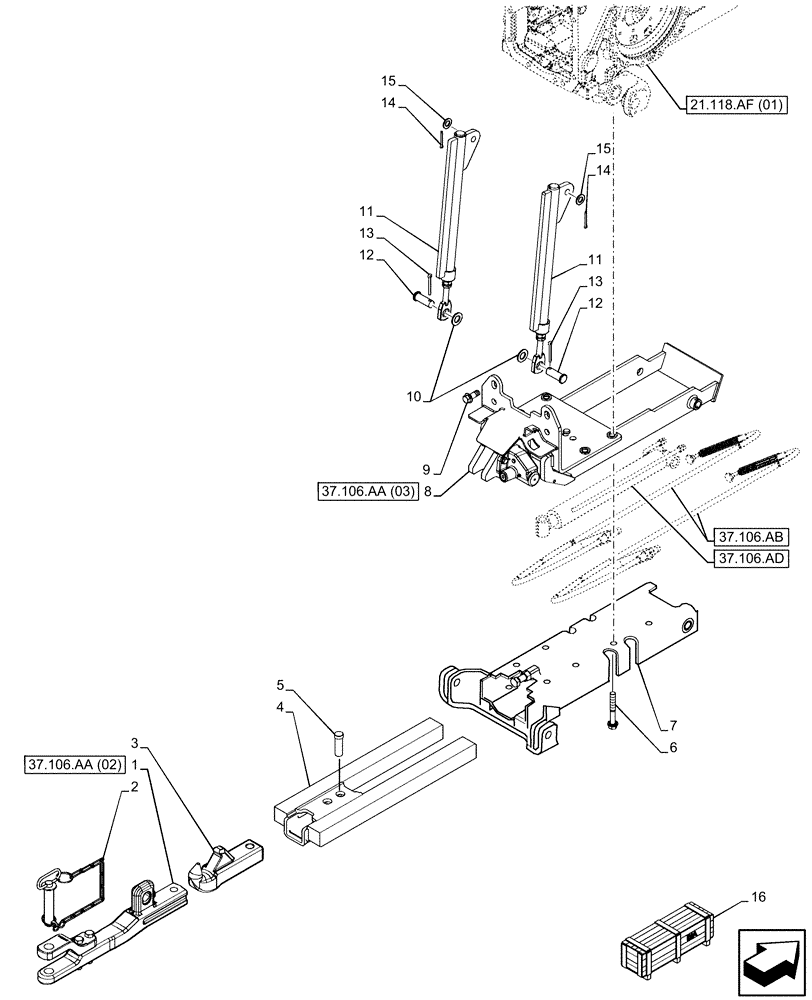

Запчасти Case IH MAXXUM 135 (37.106.AA[01]) - VAR - 758465 - AUTOMATIC HITCH, TOW HOOK, HYDRAULIC (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47403751

DRAWBAR

ASSY

1шт.

2

82025933

PIN,32mm OD x 180mm L

1шт.

3

84351317

HOOK

1шт.

4

47437754

DRAWBAR FRAME

1шт.

5

82036199

PIN,30mm OD x 87mm L

2шт.

6

87306653

FLANGE BOLT,Hex, M16 x 1.5 x 140mm, Gr 12.9

4шт.

7

84351464

HITCH

1шт.

8

84351474

HITCH

ASSY

1шт.

9

82018940

BOLT,Flng, M18 x 1.5 x 45mm, Cl 12.9

4шт.

10

83908648

WASHER,25.65mm ID x 46.43mm OD x 3.18mm Thk

2шт.

11

82036641

LIFTING ROD

2шт.

12

82036627

PIN,25mm OD x 70mm L

2шт.

13

130017

COTTER PIN,M8 x 63

2шт.

14

300423

COTTER PIN,M6.3 x 50

2шт.

15

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

16

710086024

DIA KIT, TRACTOR

Hydraulic Push Back Hitch (EDC - 80mm External Rams), Incl 1 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
