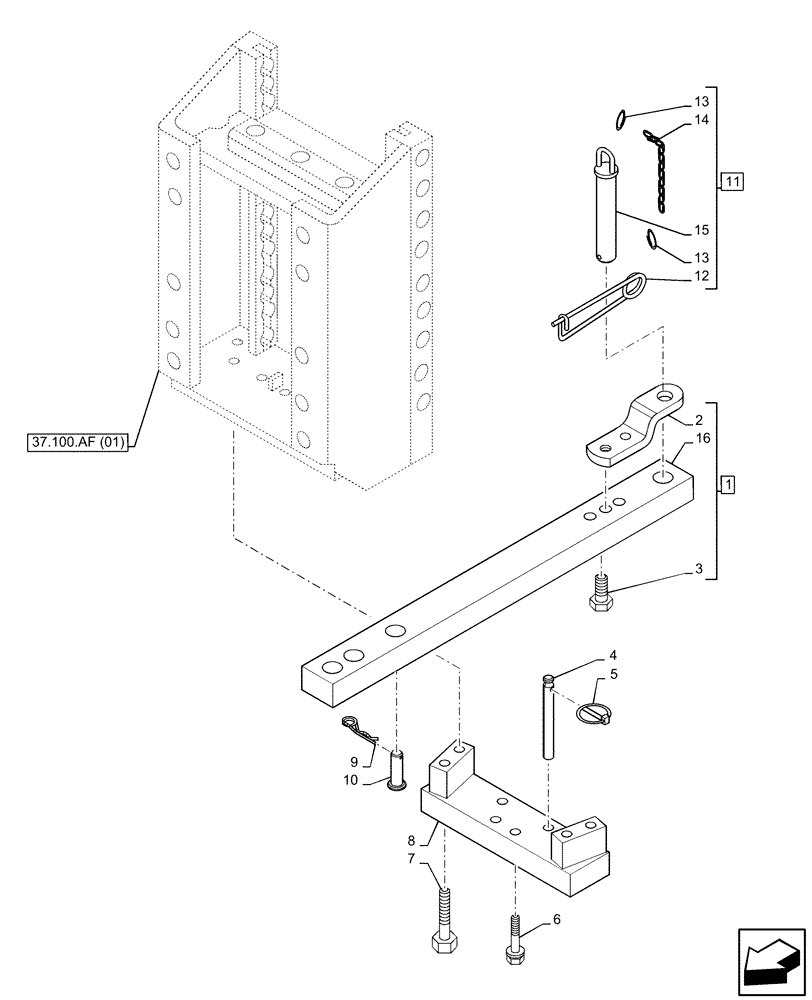

Запчасти Case IH MAXXUM 135 (37.100.AA [03]) - VAR - 758469 - SWINGING DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87558075

DRAWBAR

ASSY, Incl 2, 3, 16

1шт.

2

82026931

SUPPORT,254mm L x 75mm W x 30mm Thk, 70mm Offset

1шт.

3

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

4

82015207

PIN,16mm OD x 141mm L

2шт.

5

82014909

LOCK PIN,5.5mm OD

2шт.

6

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

2шт.

7

11125734

BOLT,Hex, M20 x 100mm, Cl 10.9

M20 x 100

4шт.

8

82039556

SUPPORT

1шт.

9

82000094

SPRING,40mm OD x 142mm L

1шт.

10

87558070

PIN,32mm OD x 124mm L

1шт.

11

87579063

HITCH PIN,32mm OD x 182mm L

ASSY, Incl 12 - 15

1шт.

12

5152004

HAIR PIN COTTER,195mm L

1шт.

13

44901192

SNAP RING,25mm ID

2шт.

14

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

15

NSS

NOT SOLD SEPARAT

Pin, Incl in 11

1шт.

16

NSS

NOT SOLD SEPARAT

Drawbar, Incl in 1

1шт.
