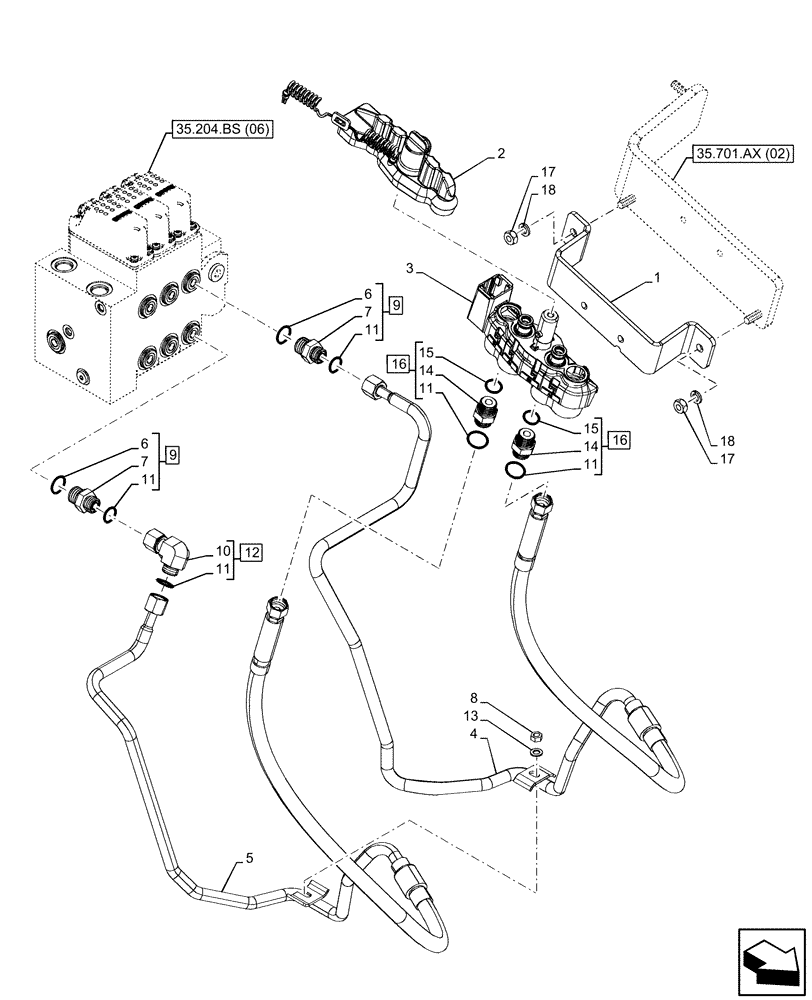

Запчасти Case IH MAXXUM 135 (35.701.AX[03]) - VAR - 758354 - FRONT LOADER HYDRAULIC SYSTEM, NA (35) - HYDRAULIC SYSTEMS

1

47681086

BRACKET

1шт.

2

47681549

DUST CAP

1шт.

3

47681510

HYD CONNECTOR

1шт.

4

47735223

PIPE

Loader Aux

1шт.

5

47735225

PIPE

Loader Aux

1шт.

6

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

2шт.

8

9706690

NUT,M8 x 1.25, Cl 8

1шт.

9

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 11 (Qty 1)

2шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 12

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

12

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

ASSY, Incl 10, 11 (Qty 1)

1шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

2шт.

15

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

16

47681095

HYD CONNECTOR,7/8"-14 x 13/16"-16 ORFS

ASSY, Incl 11 (Qty 1), 14 (Qty 1), 15 (Qty 1)

2шт.

17

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

18

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

10.2 x 17.7 x 2.5

2шт.
