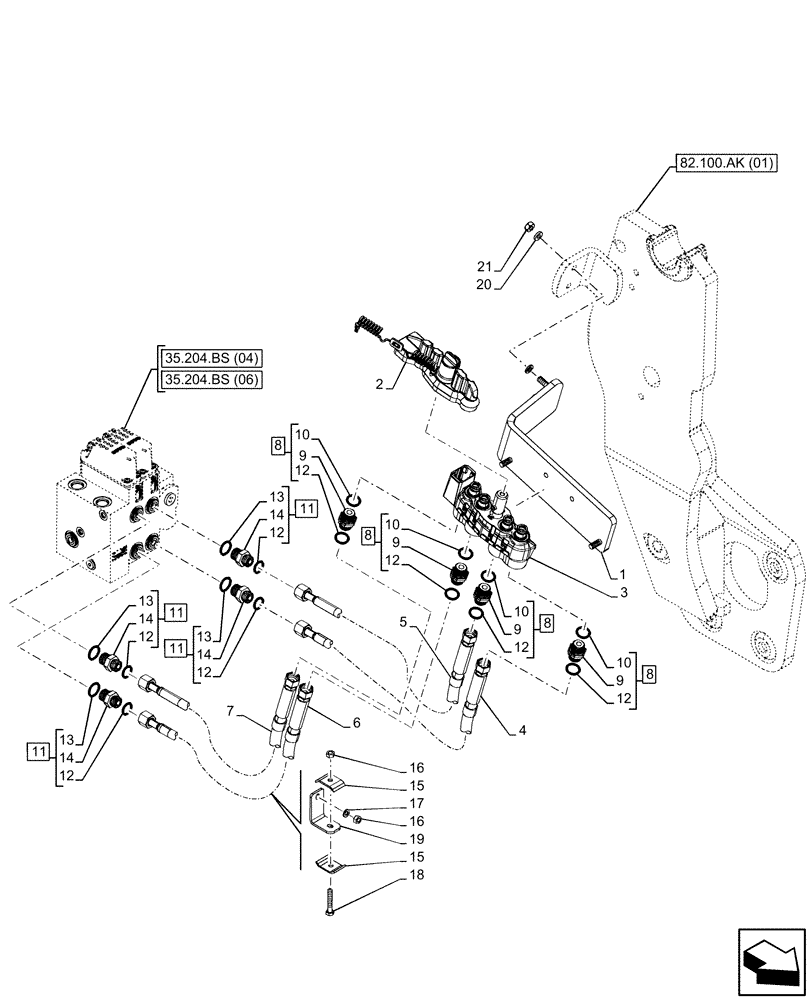

Запчасти Case IH MAXXUM 135 (35.701.AX[02]) - VAR - 758352, 758353, 758354 - FRONT LOADER HYDRAULIC SYSTEM, NA (35) - HYDRAULIC SYSTEMS

1

47681079

BRACKET

1шт.

2

47681549

DUST CAP

1шт.

3

47681462

HYD CONNECTOR

1шт.

4

47673505

PIPE

Loader Tip

1шт.

5

47673503

PIPE

Loader Crow

1шт.

6

47673509

PIPE

Loader Low

1шт.

7

47673507

PIPE

Loader Raise

1шт.

8

47681095

HYD CONNECTOR,7/8"-14 x 13/16"-16 ORFS

ASSY, Incl 9 (Qty 1), 10 (Qty 1), 12 (Qty 1)

4шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

4шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

11

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 11 (Qty 1), 12 (Qty 1), 13 (Qty 1)

4шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

4шт.

15

47057074

CLAMP,48.6mm x 30mm

2шт.

16

9706690

NUT,M8 x 1.25, Cl 8

2шт.

17

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

18

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

19

47644316

BRACKET

1шт.

20

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

21

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.
