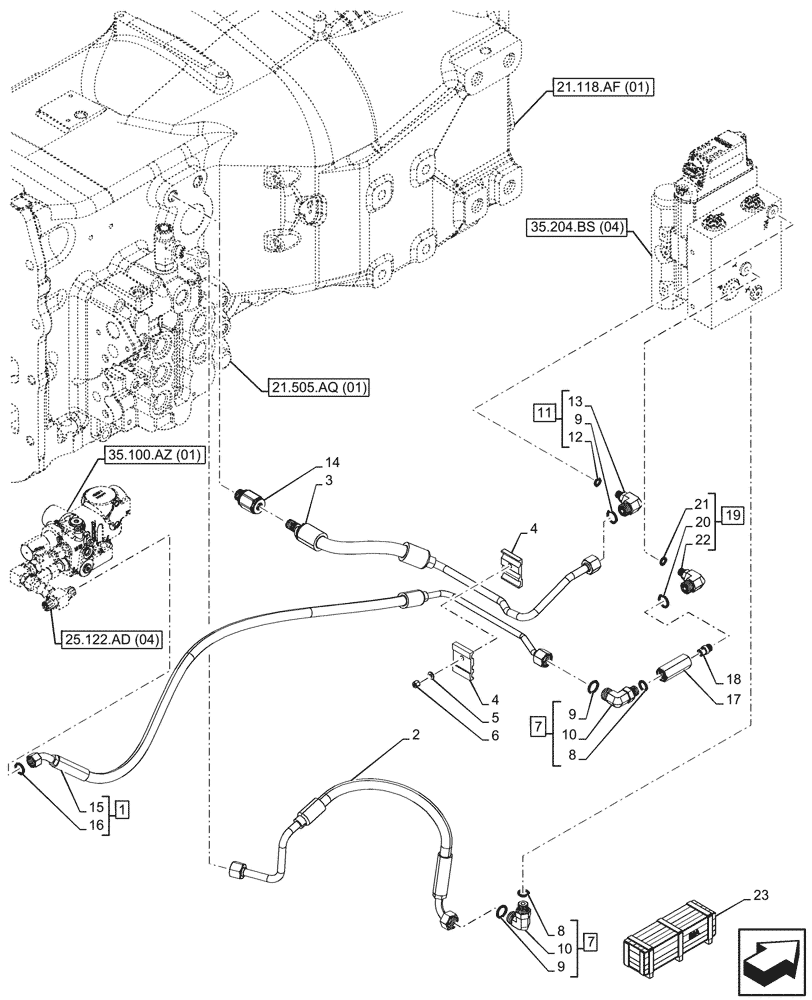

Запчасти Case IH MAXXUM 135 (35.204.BX[04A]) - VAR - 743689, 758352, 758353 - 2 MID-MOUNT CONTROL VALVES, ELECTRICAL, LINE - BEGIN YR 15-JAN-2016 (35) - HYDRAULIC SYSTEMS

1

47851464

HYD TUBE

ASSY, Load Sensing MMV, Incl 15, 16

1шт.

2

84582653

HYDRAULIC HOSE

Supply Servo MMV

1шт.

3

47606843

PIPE

Discharge Servo MMV

1шт.

4

84479191

CLAMP BRACKET

2шт.

5

12637801

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

6

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

7

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 8 (Qty 1), 9 (Qty 1), 10 (Qty 1)

2шт.

8

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

2шт.

11

84553343

90 ELBOW,11/16"-16 ORFS x M10 X 1 ORB

ASSY, Incl 9 (Qty 1), 12, 13

1шт.

12

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

14

47606393

FITTING

1шт.

15

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

16

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

47398421

HYD CONNECTOR,9/16"-18 x M12 x 1.5

1шт.

18

47398422

CHECK VALVE

1шт.

19

5185047

ELBOW,90 Deg, 9/16-18 ORFS x M10 x 1 ORB

ASSY, Incl 20 - 22

1шт.

20

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

21

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

22

NSS

NOT SOLD SEPARAT

Elbow, Incl in 19

1шт.

23

719763104

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (2 Slice), W/O Joystick, Incl 1 - 22

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
