Запчасти Case IH MAXXUM 135 (35.204.BX[02]) - VAR - 758445 - 1 MID-MOUNT CONTROL VALVE, ELECTRICAL, LINE - END YR 14-JAN-2016 (35) - HYDRAULIC SYSTEMS

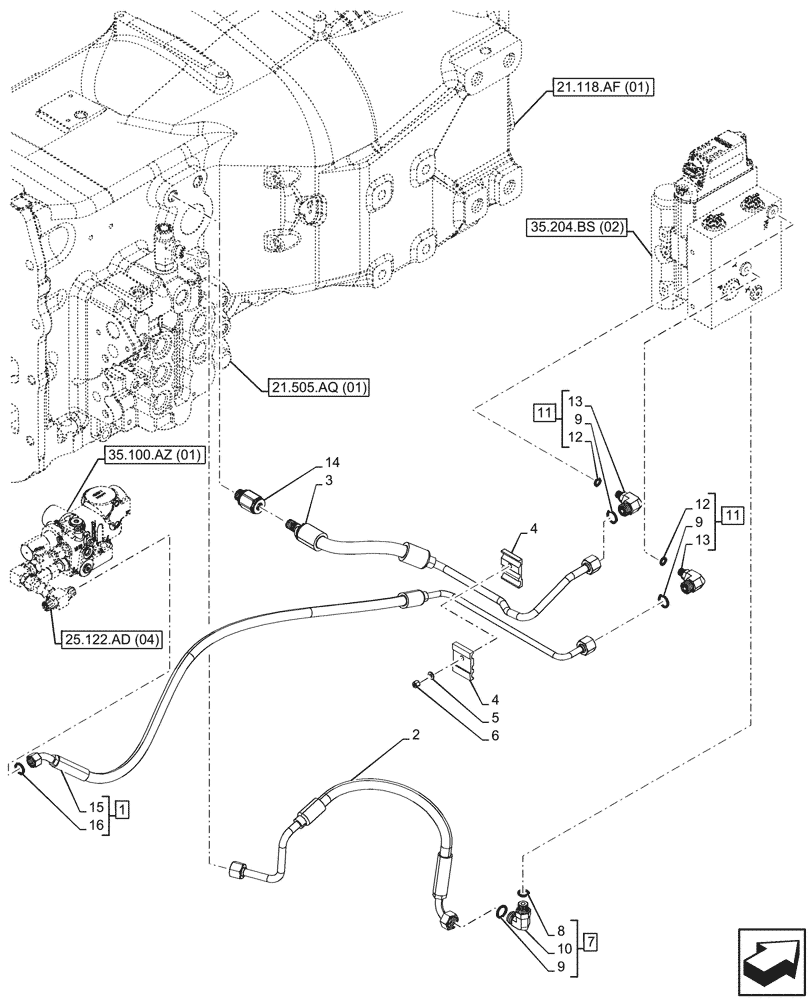

Схема запчастей Case IH MAXXUM 135 - (35.204.BX[02]) - VAR - 758445 - 1 MID-MOUNT CONTROL VALVE, ELECTRICAL, LINE - END YR 14-JAN-2016 (35) - HYDRAULIC SYSTEMS
21.118.af (01)
13
6
4
3
13
12
16
4
11
14
1
5
9
10
7
8
9
11
15
9
2
35.204.bs (02)
25.122.ad (04)
12
21.505.aq (01)
35.100.az (01)

Артикул

Название

Примечание

Количество

1

47478010

HYD TUBE

ASSY, Load Sensing MMV, Incl 15, 16

1шт.

2

84582653

HYDRAULIC HOSE

Supply Servo MMV

1шт.

3

47606843

PIPE

Discharge Servo MMV

1шт.

4

84479191

CLAMP BRACKET

2шт.

5

12637801

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

6

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

7

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 8, 9 (Qty 1), 10

1шт.

8

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

11

84553343

90 ELBOW,11/16"-16 ORFS x M10 X 1 ORB

ASSY, Incl 9 (Qty 1), 12 (Qty 1), 13

2шт.

12

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

2шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

2шт.

14

47606393

FITTING

1шт.

15

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

16

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 16
