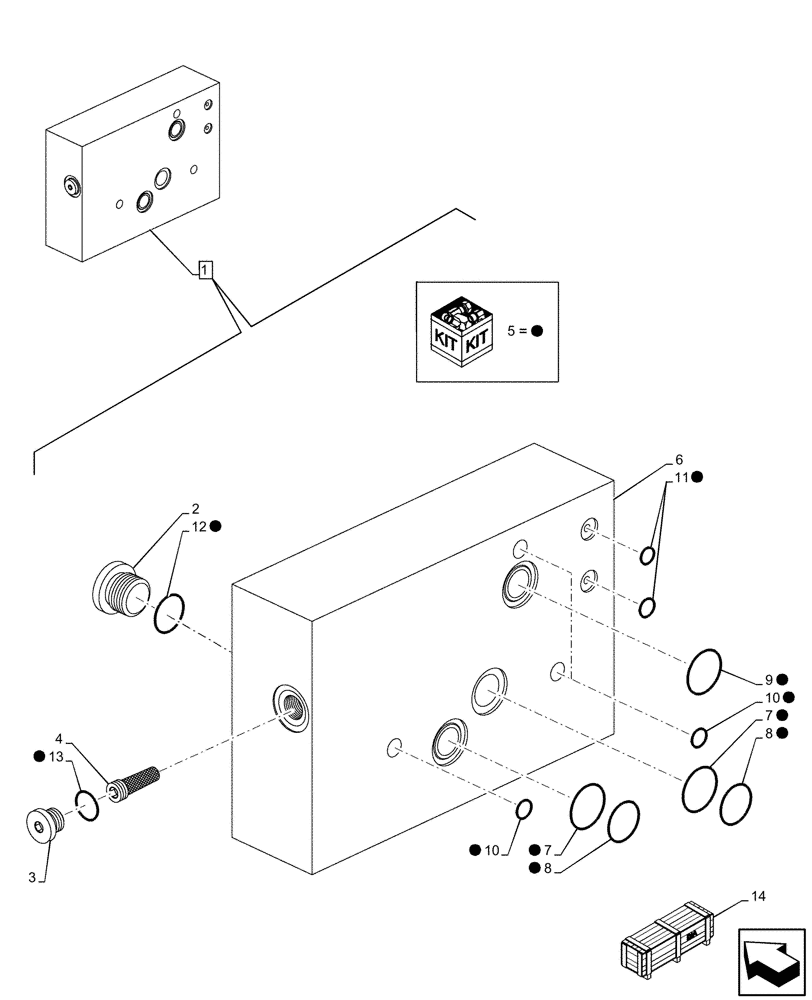

Запчасти Case IH MAXXUM 135 (35.204.BS[10]) - VAR - 743689, 743690, 758352, 758353, 758354, 758445 - MID-MOUNT CONTROL VALVE, ELECTRICAL, VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84381621

VALVE SECTION

ASSY, Incl 2 - 13

1шт.

2

47129438

PLUG

1шт.

3

47129435

PLUG

1шт.

4

47129436

FILTER

1шт.

5

84151927

SEAL KIT

Incl 7 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

Connection Plate, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

O-ring, 18 x 2.5 HNRB, Incl in 5

2шт.

8

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15, Incl in 5

2шт.

9

NSS

NOT SOLD SEPARAT

O-ring, 20 x 2.5 HNRB, Incl in 5

2шт.

10

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04, Incl in 5

5шт.

11

NSS

NOT SOLD SEPARAT

O-ring, 8 x 2 HNRB, Incl in 5

2шт.

12

NSS

NOT SOLD SEPARAT

O-ring, 19.4 x 2.1 HNRB, Incl in 5

1шт.

13

NSS

NOT SOLD SEPARAT

O-ring, 9.4 x 2.1 HNRB, Incl in 5

1шт.

14

718223024

Electronic Mid Mount Valve Kit (1 Slice), W/O Joystick, Incl 1 - 13

DIA KIT, TRACTOR

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

14

718229024

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (3 Slice), W/O Joystick, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

14

719763104

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (2 Slice), W/O Joystick, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
