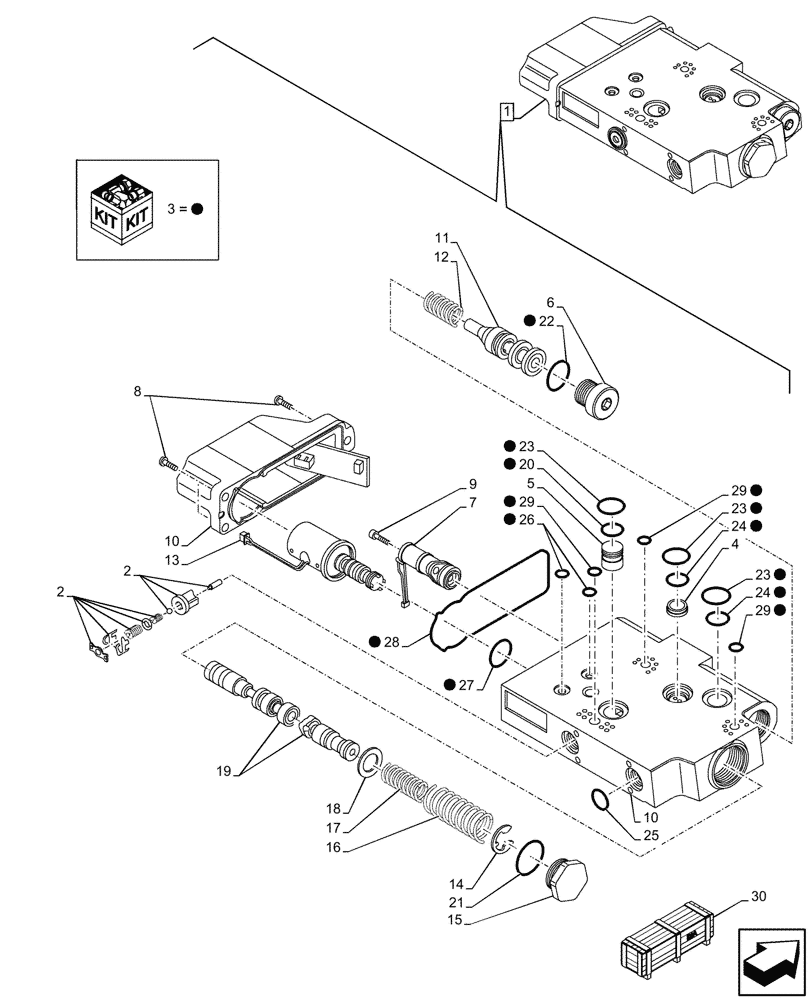

Запчасти Case IH MAXXUM 135 (35.204.BS[09]) - VAR - 743689, 743690, 758352, 758353, 758354, 758445 - MID-MOUNT CONTROL VALVE, HYD VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84381608

HYD VALVE SECTION

ASSY, Incl 2 - 29

1шт.

1

84381608R

REMAN-HYD VALVE

Reman ASSY, Incl 2 - 29

1шт.

1

84381608C

CORE-VALVE HYD

Core Return Number

1шт.

2

47554915

SPRING KIT

Hydraulic Valve Section

1шт.

3

47554912

SEAL KIT

Hydraulic Valve Section, ASSY, Incl 20 - 29

1шт.

4

84279974

VALVE POPPET

1шт.

5

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

6

47554943

PLUG

1шт.

7

NSS

NOT SOLD SEPARAT

Coil, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

3шт.

9

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Parts Set, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Locking Washer, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Spring Disk, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

O-ring, 14.8 x 1, Incl in 3

1шт.

21

NSS

NOT SOLD SEPARAT

O-ring, 29.4 x 2.1 HNBR, Incl in 3

1шт.

22

NSS

NOT SOLD SEPARAT

O-ring, 19.4 x 2.1 HNBR, Incl in 3

1шт.

23

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15, Incl in 3

2шт.

24

NSS

NOT SOLD SEPARAT

O-ring, 18 x 2.5 HNBR, Incl in 3

2шт.

25

NSS

NOT SOLD SEPARAT

O-ring, 20 x 2.5 HNBR, Incl in 3

1шт.

26

NSS

NOT SOLD SEPARAT

O-ring, 8 x 2 HNBR, Incl in 3

2шт.

27

NSS

NOT SOLD SEPARAT

O-ring, 23 x 2.5 HNBR, Incl in 3

1шт.

28

NSS

NOT SOLD SEPARAT

Sealing Frame, Incl in 3

1шт.

29

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04, Incl in 3

3шт.

30

718223024

Electronic Mid Mount Valve Kit (1 Slice), W/O Joystick, Incl 1 - 29

DIA KIT, TRACTOR

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

30

718229024

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (3 Slice), W/O Joystick, Incl 1 - 29

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

30

719763104

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (2 Slice), W/O Joystick, Incl 1 - 29

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
