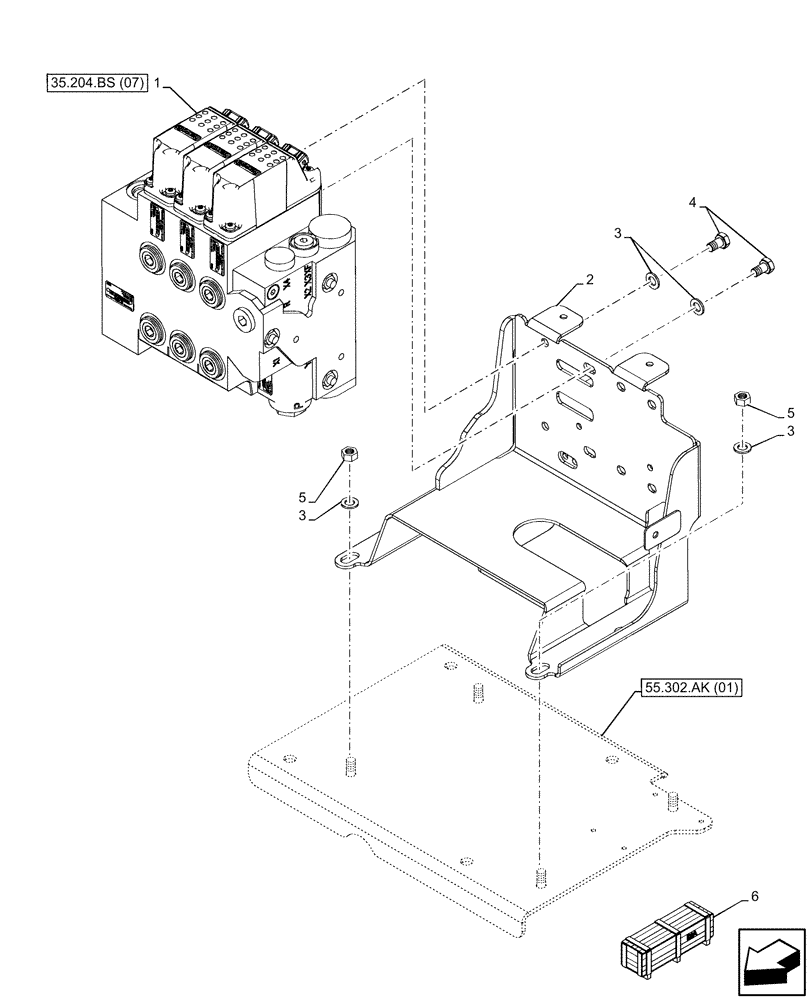

Запчасти Case IH MAXXUM 135 (35.204.BS[06]) - VAR - 743690, 758354 - 3 MID-MOUNT CONTROL VALVES, ELECTRICAL, SUPPORT (35) - HYDRAULIC SYSTEMS

1

47433961

CONTROL VALVE

3 EH, ASSY

1шт.

2

47771766

SUPPORT

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

4

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

4шт.

5

9706690

NUT,M8 x 1.25, Cl 8

4шт.

6

718229024

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (3 Slice), W/O Joystick, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
