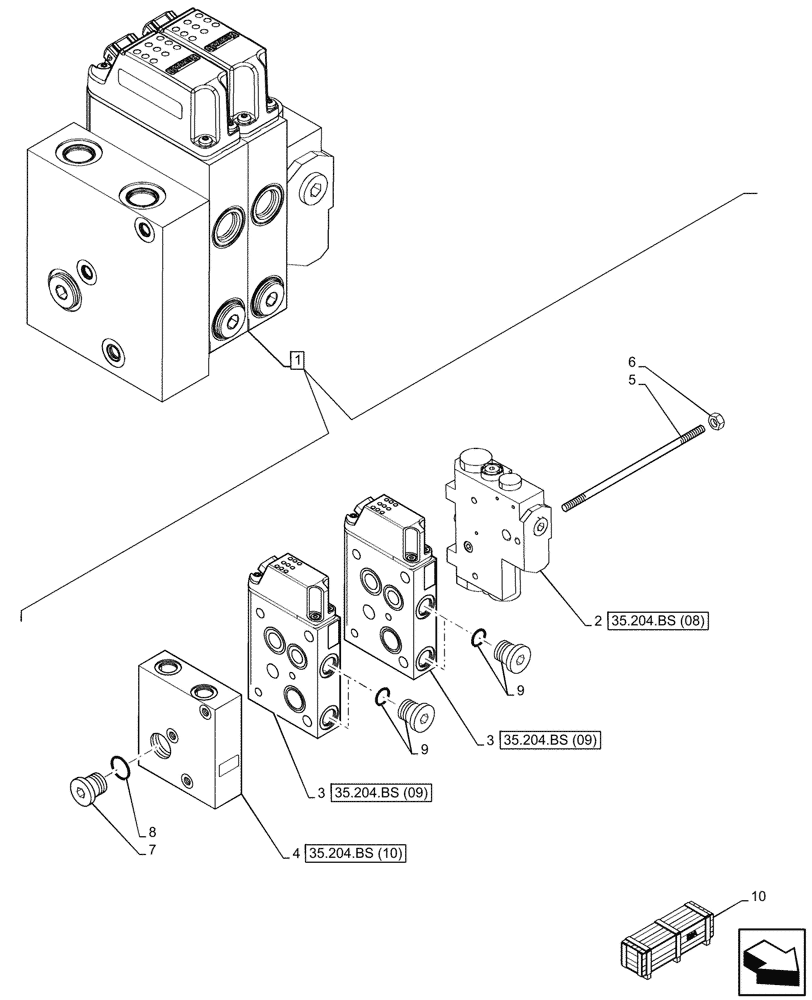

Запчасти Case IH MAXXUM 135 (35.204.BS[05]) - VAR - 743689, 758352, 758353 - 2 MID-MOUNT CONTROL VALVES, ELECTRICAL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47433959

CONTROL VALVE

ASSY, 2 EH, Incl 2 - 9

1шт.

2

84230200

HYD VALVE SECTION

ASSY

1шт.

3

84381608

HYD VALVE SECTION

ASSY

2шт.

3

84381608R

REMAN-HYD VALVE

Reman Assy

2шт.

3

84381608C

CORE-VALVE HYD

Core Return Number

2шт.

4

84381621

VALVE SECTION

ASSY

1шт.

5

5195168

TIE-ROD,M8

171mm

3шт.

6

5195169

NUT,M8

3шт.

7

47129435

PLUG

1шт.

8

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

9

47554504

KIT,M5 x 18mm, Cl 10.9mm

Hydraulic Valve Section

4шт.

10

719763104

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (2 Slice), W/O Joystick, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
