Запчасти Case IH MAXXUM 135 (35.204.BS[04]) - VAR - 743689, 758352, 758353 - 2 MID-MOUNT CONTROL VALVES, ELECTRICAL, SUPPORT (35) - HYDRAULIC SYSTEMS

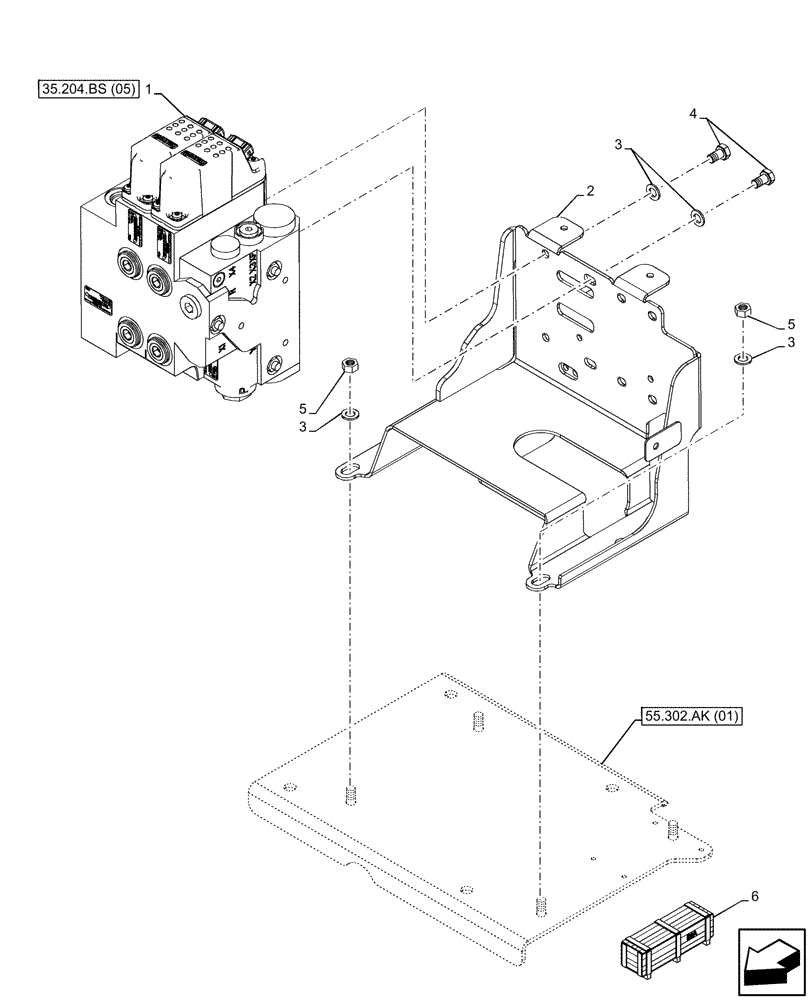

Схема запчастей Case IH MAXXUM 135 - (35.204.BS[04]) - VAR - 743689, 758352, 758353 - 2 MID-MOUNT CONTROL VALVES, ELECTRICAL, SUPPORT (35) - HYDRAULIC SYSTEMS
55.302.ak (01)
3
3
5
3
5
1
6
2
4
35.204.bs (05)

Артикул

Название

Примечание

Количество

1

47433959

CONTROL VALVE

2 EH, ASSY

1шт.

2

47771766

SUPPORT

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

4

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

4шт.

5

9706690

NUT,M8 x 1.25, Cl 8

4шт.

6

719763104

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (2 Slice), W/O Joystick, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
