Запчасти Case IH MAXXUM 135 (35.204.BQ[01]) - VAR - 743686 - 3 REMOTE CONTROL VALVES, W/ ELECTROHYDRAULIC ENGAGEMENT (35) - HYDRAULIC SYSTEMS

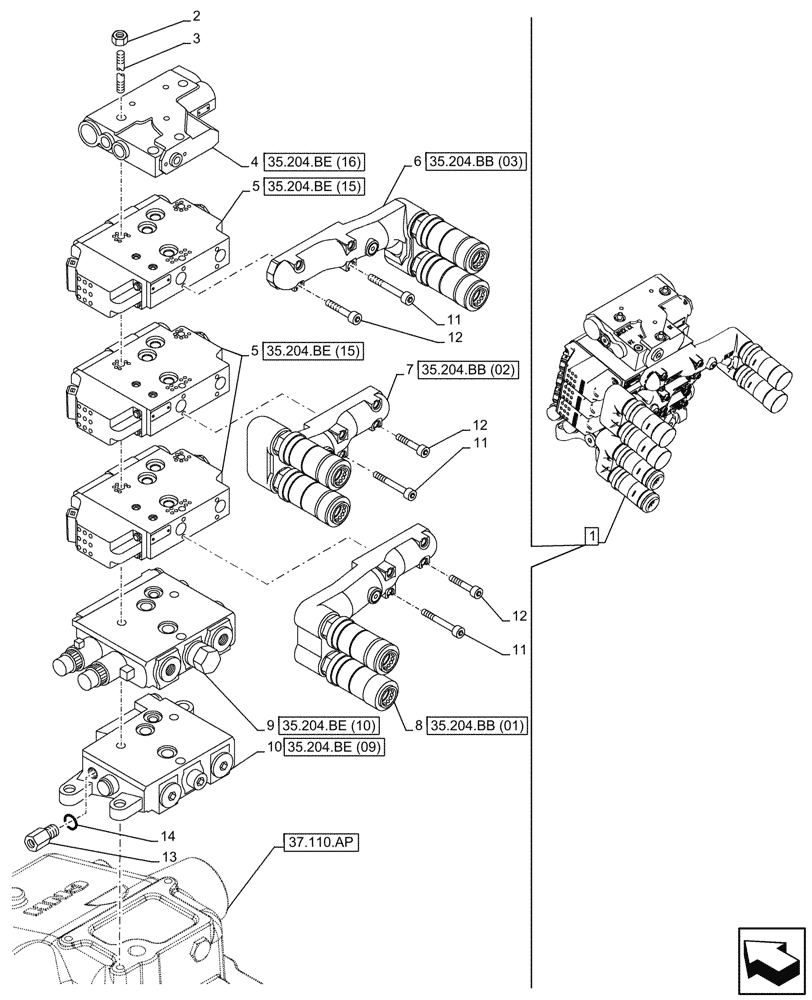

Схема запчастей Case IH MAXXUM 135 - (35.204.BQ[01]) - VAR - 743686 - 3 REMOTE CONTROL VALVES, W/ ELECTROHYDRAULIC ENGAGEMENT (35) - HYDRAULIC SYSTEMS
35.204.bb (03)
3
14
10
4
6
12
7
12
5
11
1
11
12
11
5
8
13
2
9
35.204.bb (02)
35.204.be (16)
35.204.be (09)
37.110.ap
35.204.be (15)
35.204.be (15)
35.204.bb (01)
35.204.be (10)

Артикул

Название

Примечание

Количество

1

47628494

DISTRIBUTOR

ASSY, Incl 2 - 14

1шт.

2

5195169

NUT,M8

3шт.

3

47131731

TIE-ROD,235mm L

3шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

84230181

HYD VALVE SECTION

ASSY

3шт.

6

47532954

MANIFOLD

Group 3, ASSY

1шт.

7

47532950

MANIFOLD

Group 2, ASSY

1шт.

8

47532947

MANIFOLD

Group 1, ASSY

1шт.

9

84175671

VALVE SECTION

ASSY

1шт.

10

84142195

HYD VALVE SECTION

ASSY

1шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50mm

6шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35mm

6шт.

13

5191704

CHECK VALVE

1шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1mm

1шт.

Выбрано товаров: 14
