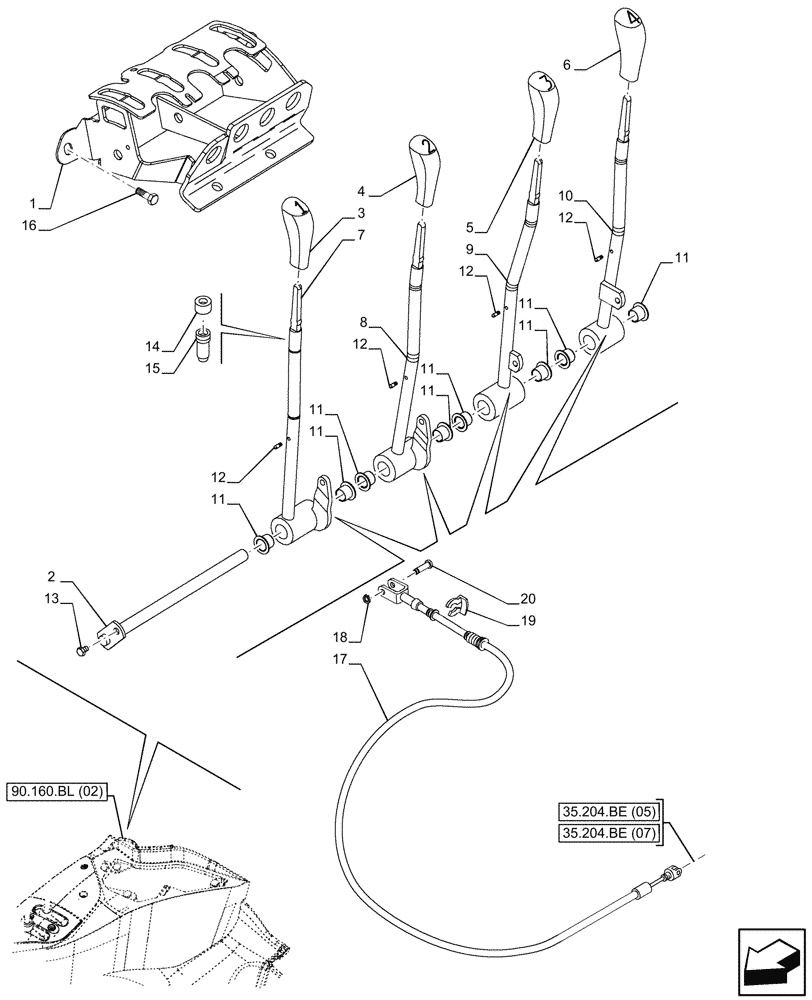

Запчасти Case IH MAXXUM 135 (35.204.BL[02]) - VAR - 743685, 758358 - 4 REMOTE CONTROL VALVES, CONTROL LEVER (35) - HYDRAULIC SYSTEMS

1

84373709

FRAME

Mechanical Remote Control, Black

1шт.

2

84186398

HANDLED SHAFT

1шт.

3

47723860

KNOB

N. 1, Green

1шт.

4

47723861

KNOB

N. 2, Blue

1шт.

5

47723862

KNOB

N. 3, Ginger

1шт.

6

47723863

KNOB

N. 4, Black

1шт.

7

84373726

LEVER

1st Control Lever, Black

1шт.

8

84373733

LEVER

2nd Control Lever, Black

1шт.

9

84373742

LEVER

3rd Control Lever, Black

1шт.

10

84373782

LEVER

4th Control Lever, Black

1шт.

11

82035633

BUSHING

8шт.

12

84209523

SPRING LOCK

4шт.

13

10856821

BOLT,Hex, M5 x 8mm, Cl 8.8, Full Thd

1шт.

14

84209516

LOCKING DEVICE

Upper

4шт.

15

84209520

LOCKING DEVICE

Lower

4шт.

16

14307374

BOLT,Hex Skt, M10 x 1.25 x 20mm, Cl 12.9, Full Thd

4шт.

17

87678198

CABLE,1828mm L

Remote Control

4шт.

18

11087776

CIRCLIP,Ext., M6, BLO

4шт.

19

82007837

LOCKING RING

4шт.

20

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

4шт.
