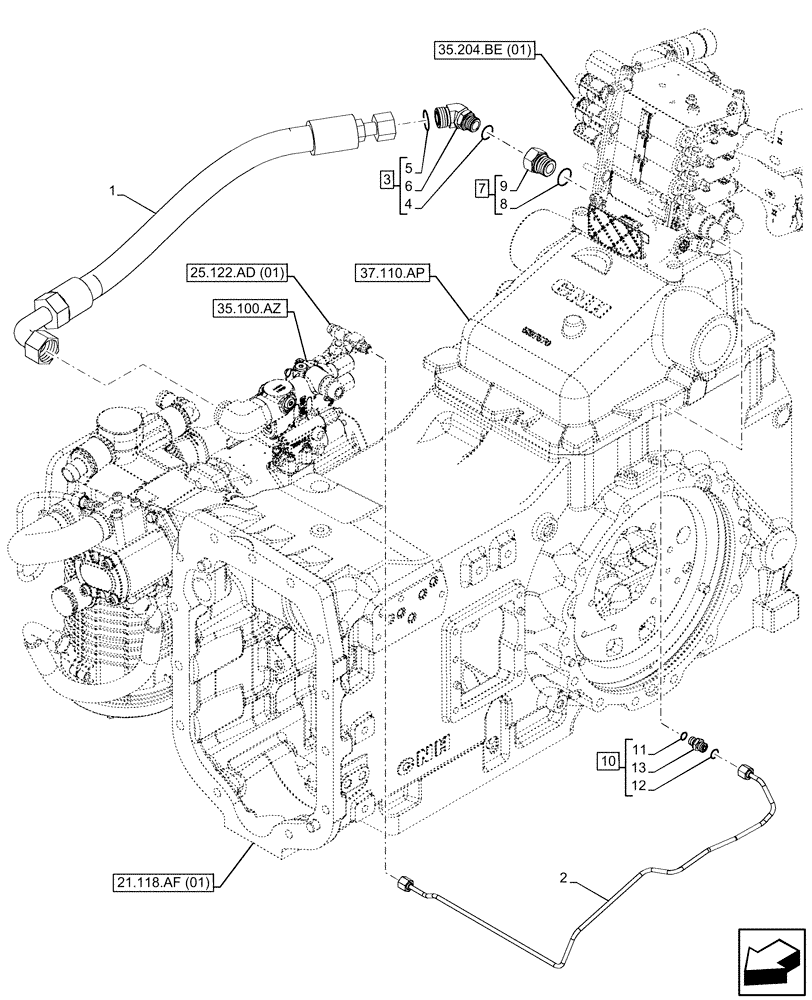

Запчасти Case IH MAXXUM 135 (35.204.BJ[01]) - VAR - 390856, 396844, 743685, 743686, 743733, 758358, 758359, 758642, 758644 - REMOTE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47592702

HOSE,25mm ID x 675mm L

Supply, 25mm ID x 675mm

1шт.

2

47541493

TUBE

Load Sense

1шт.

3

47592701

ELBOW UNION

ASSY, Incl 4 - 6

1шт.

4

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

5

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

7

47602291

HYD CONNECTOR

ASSY, Incl 8, 9

1шт.

8

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

10

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 11 - 13

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Green

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.
