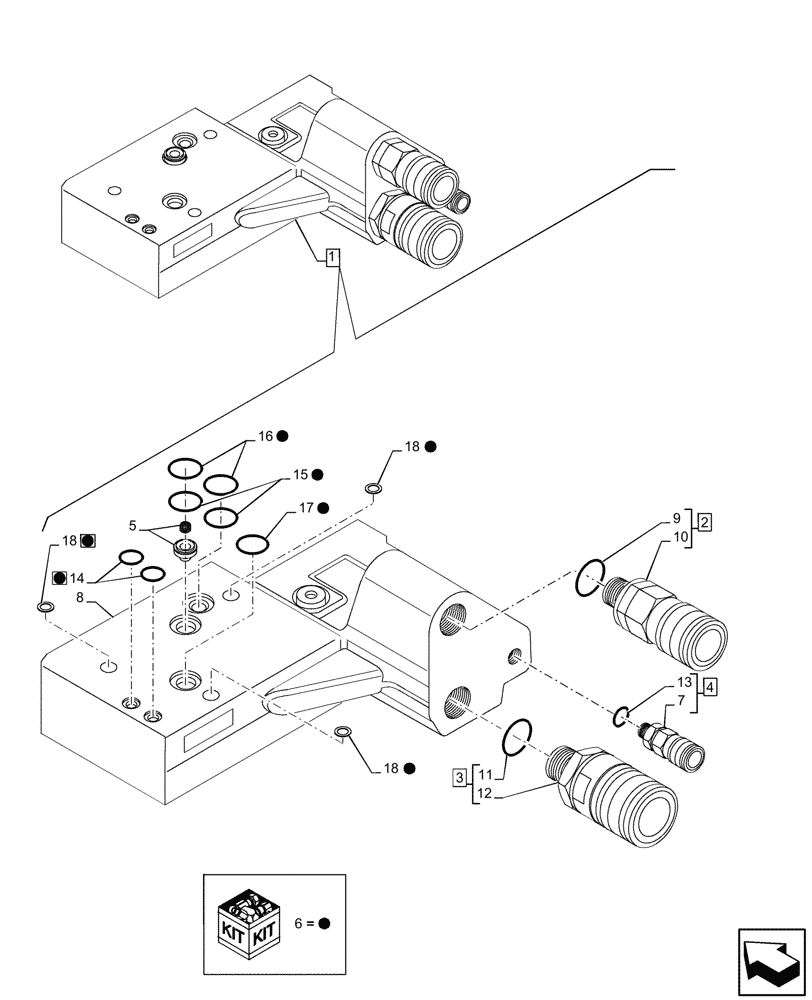

Запчасти Case IH MAXXUM 135 (35.204.BE[14]) - VAR - 396844, 743686, 758358, 758359 - CONTROL VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47722714

HYDRAULIC VALVE

ASSY, Power Beyond, Incl 2 - 19

1шт.

2

87310811

PUSH-PULL COUPLING

ASSY, Incl 9, 10

1шт.

3

87310813

PUSH-PULL COUPLING

ASSY, Incl 11, 12

1шт.

4

87310816

PUSH-PULL COUPLING

ASSY, Incl 7, 13

1шт.

5

47869416

SERVICE KIT

Valve Section

1шт.

6

47126963

SEAL

ASSY, Incl 14 - 18

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 4

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

11

14438185

O-RING,24mm ID x 3mm

1шт.

12

NSS

NOT SOLD SEPARAT

Body, Incl in 3

1шт.

13

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

14

NSS

NOT SOLD SEPARAT

O-ring, 8 x 2 HNBR, Incl in7

2шт.

15

NSS

NOT SOLD SEPARAT

O-ring, 18 x 2.5 HNBR, Incl in7

2шт.

16

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15, Incl in 7

2шт.

17

NSS

NOT SOLD SEPARAT

O-ring, 20 x 2.5 HNBR, Incl in7

1шт.

18

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.0.4, Incl in 7

3шт.
