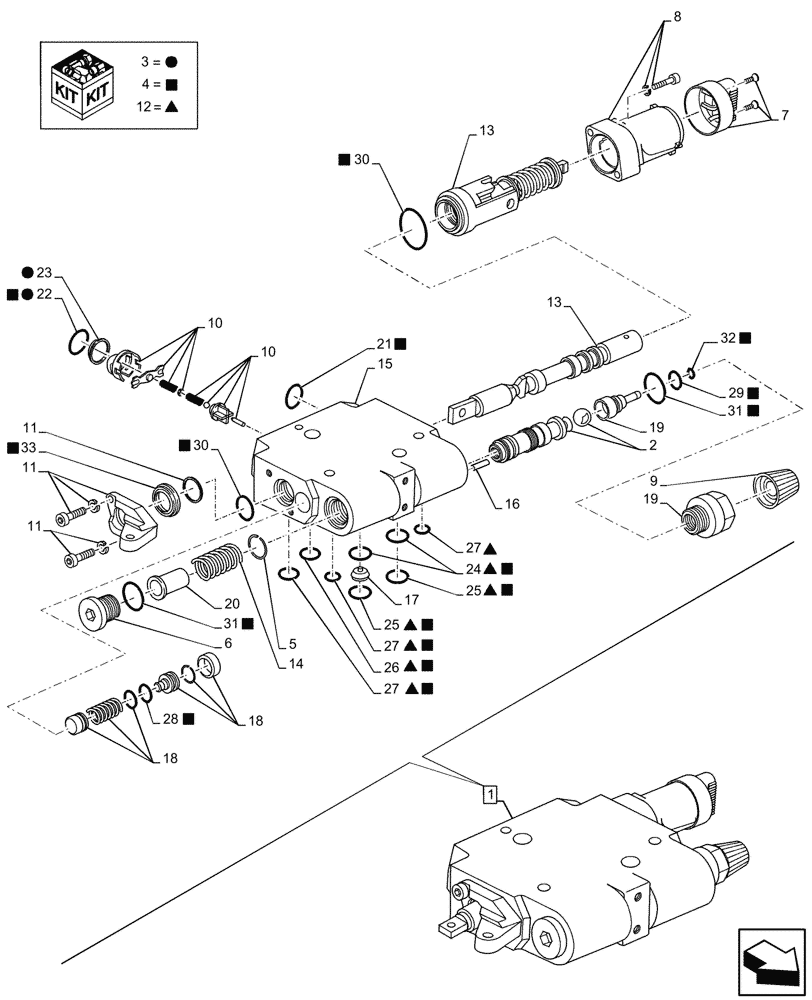

Запчасти Case IH MAXXUM 135 (35.204.BE[11]) - VAR - 396844, 743685, 758358 - CONTROL VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87328572

HYD VALVE SECTION

ASSY, Incl 2 - 33

2шт.

2

87394197

REPAIR KIT

Valve Section

1шт.

3

84125422

SEAL KIT

Valve Section, ASSY, Incl 21 - 23

1шт.

4

87661337

KIT

Valve Section, ASSY, Incl 21, 22, 24 - 33

1шт.

5

47129463

RETAINER

1шт.

6

47615569

PLUG,M22 x 1.5 x 44.1mm L

1шт.

7

47613919

KNOB

1шт.

8

87531919

REPAIR KIT

Valve Section

1шт.

9

87319988

KNOB

1шт.

10

5191720

REPAIR KIT

Valve Section

1шт.

11

47615625

SERVICE KIT

Valve Section

1шт.

12

47127019

SEAL

Incl 24 - 27

1шт.

13

NSS

NOT SOLD SEPARAT

Subassembly, Incl in 1

1шт.

14

84124585

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Slotted Spring Pin, Incl in 1

1шт.

17

47127006

VALVE

1шт.

18

87666211

SERVICE KIT

Valve Section, with Threaded Hole Cap

1шт.

18

87376020

SERVICE KIT

Valve Section

1шт.

19

47130767

KIT

Valve Section

1шт.

20

NSS

NOT SOLD SEPARAT

Guide Pin, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring, 15 x 2.5 HNBR, Incl in 3 and Incl in 4

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring, 17 x 2.5 HNBR, Incl in 3 ans Incl in 4

1шт.

23

NSS

NOT SOLD SEPARAT

Washer, Incl in 3

1шт.

24

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15, Incl in 4

2шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 2.5 HNBR, Incl in 4

2шт.

26

NSS

NOT SOLD SEPARAT

O-Ring, 20 x 2.5 HNBR, Incl in 4

1шт.

27

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04, Incl in 4

3шт.

28

NSS

NOT SOLD SEPARAT

Support Ring, 11.8 x 15 x 0.8, Incl in 4

1шт.

29

NSS

NOT SOLD SEPARAT

O-Ring, 11 x 2 HNBR, Incl in 4

1шт.

30

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 3 HNBR, Incl in 4

2шт.

31

NSS

NOT SOLD SEPARAT

O-Ring, 19.4 x 2.1 HNBR, Incl in 4

2шт.

32

NSS

NOT SOLD SEPARAT

O-Ring, 6 x 1.5 HNBR, Incl in 4

1шт.

33

NSS

NOT SOLD SEPARAT

Scraper Ring, HNBR, Incl in 4

1шт.
