Артикул
Название
Примечание
Количество

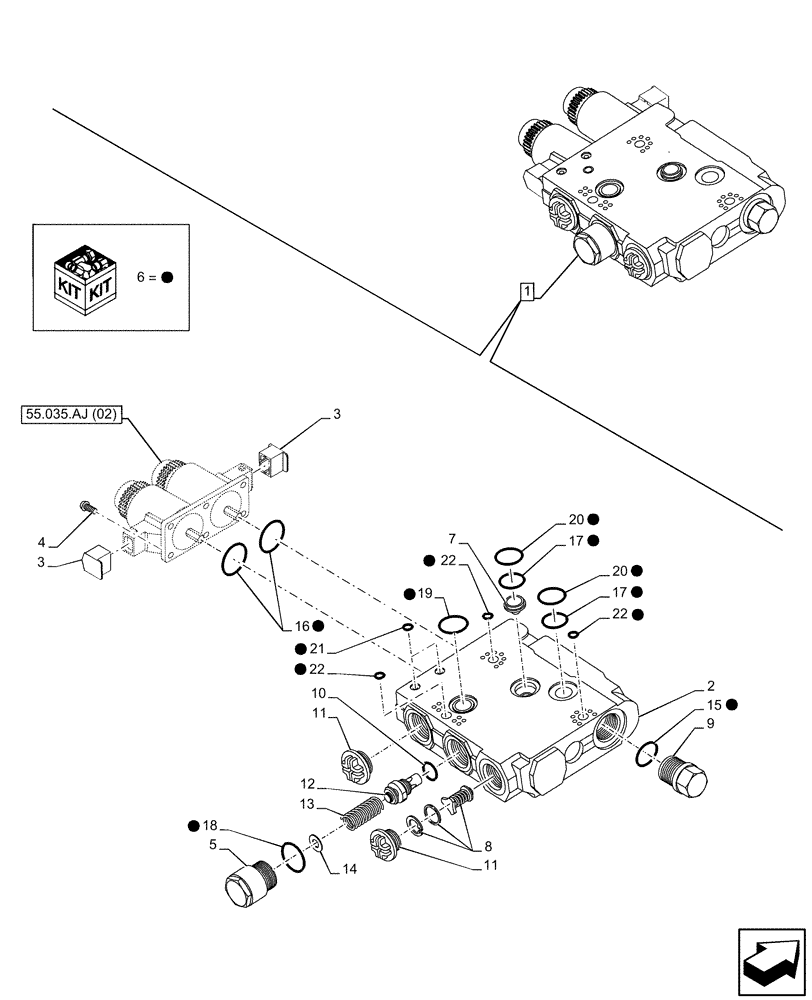

1
84175671
VALVE SECTION
ASSY, Incl 2 - 22
1шт.
See also Figure 55.035.AJ (02)
1шт.
2
NSS
NOT SOLD SEPARAT
Valve Housing, Incl in 1
1шт.
3
NSS
NOT SOLD SEPARAT
Protective Cap, Incl in 1
2шт.
4
47129409
SET SCREW,Oval Head
6шт.
5
47129410
PLUG,Hex, 29.2mm OD
1шт.
6
84312718
SEAL KIT
Valve Section, ASSY, Incl 15 - 22
1шт.
7
84127100
SHUT-OFF VALVE
1шт.
8
84232107
REPAIR KIT
Valve Section
1шт.
9
87531487
PLUG
1шт.
10
87531495
O-RING,12.00mm ID x 1.75mm
1шт.
11
NSS
NOT SOLD SEPARAT
Protective Cap, Incl in 1
2шт.
12
47129415
INSERT
1шт.
13
47129411
SPRING
1шт.
14
47129406
SHIM,0.30mm T
1шт.
14
47129407
SHIM,0.40mm T
1шт.
14
47129416
SHIM,0.80mm T
1шт.
15
NSS
NOT SOLD SEPARAT
O-Ring, 21.4 x 2.1 HNBR, Incl in 6
1шт.
16
NSS
NOT SOLD SEPARAT
O-Ring, 28 x 2 HNBR, Incl in 6
2шт.
17
NSS
NOT SOLD SEPARAT
O-Ring, 18 x 2.5 HNBR, Incl in 6
2шт.
18
NSS
NOT SOLD SEPARAT
O-Ring, 23 x 2.5 HNBR, Incl in 6
1шт.
19
NSS
NOT SOLD SEPARAT
O-Ring, 20 x 2.5 HNBR, Incl in 6
1шт.
20
NSS
NOT SOLD SEPARAT
Support Ring, 24.5 x 2.15 HNBR, Incl in 6
2шт.
21
NSS
NOT SOLD SEPARAT
Shim, 11.8 x 0.04 HNBR, Incl in 6
1шт.
22
NSS
NOT SOLD SEPARAT
O-Ring, 6 x 1.5 HNBR, Incl in 6
1шт.
Выбрано товаров: 25
