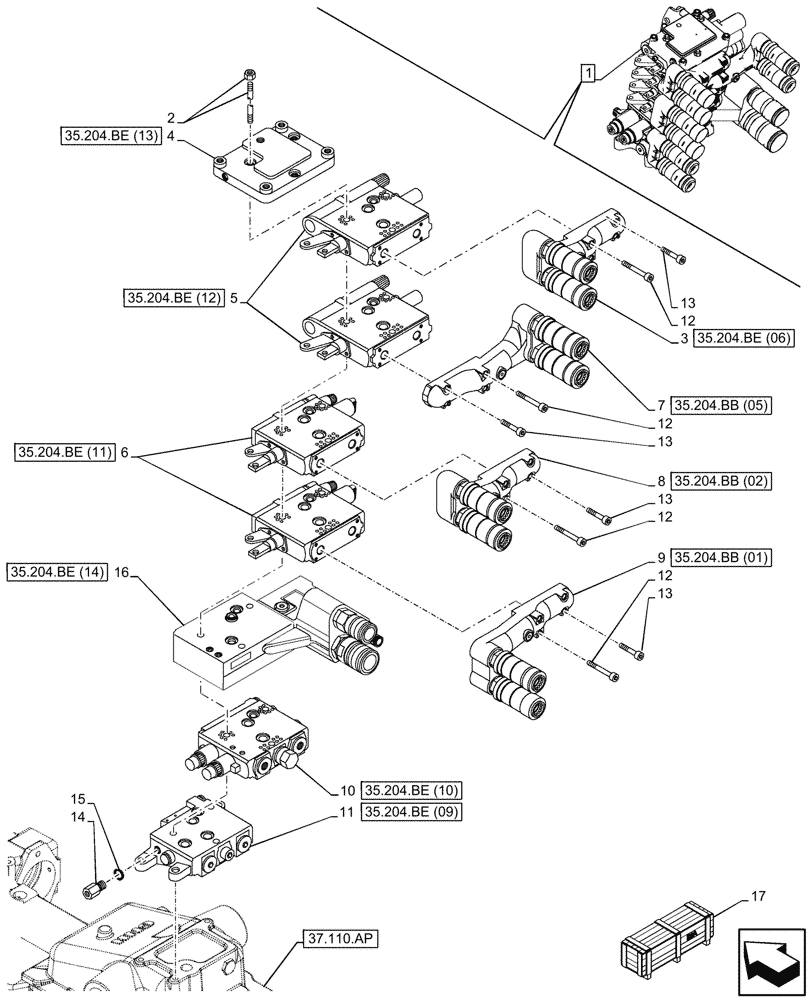

Запчасти Case IH MAXXUM 135 (35.204.BE[08]) - VAR - 758358 - 4 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT,2, CONFIGURABLE,2, NOT CONFIGURABLE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47722694

DISTRIBUTOR

ASSY, Incl 2 - 17

1шт.

2

47904364

KIT

Distributor

3шт.

3

47722627

MANIFOLD

Group 5, ASSY

1шт.

4

5192188

BODY

ASSY

1шт.

5

87546169

CONTROL VALVE

ASSY

2шт.

5

87546169R

REMAN-HYD VALVE

2шт.

5

87546169C

CORE-VALVE HYD

Return Number

2шт.

6

87328572

HYD VALVE SECTION

ASSY

2шт.

6

87328572R

REMAN-HYD VALVE

2шт.

6

87328572C

CORE-VALVE HYD

Return Number

2шт.

7

47532971

MANIFOLD

Group 4, ASSY

1шт.

8

47532950

MANIFOLD

Group 2, ASSY

1шт.

9

47532947

MANIFOLD

Group 1, ASSY

1шт.

10

84175671

VALVE SECTION

ASSY

1шт.

10

84175671R

REMAN-HYD VALVE

1шт.

10

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

84142195

HYD VALVE SECTION

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35mm

8шт.

14

5191704

CHECK VALVE

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1mm

1шт.

16

47722714

HYDRAULIC VALVE

ASSY

1шт.

17

719143014

DIA KIT, TRACTOR

Hydraulic Power Beyond Slice with Flat Face Couplers, Incl 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
