Запчасти Case IH MAXXUM 135 (35.160.AB[12]) - VAR - 758473 - 3 POINT HITCH, FRONT, HYD. LINE (35) - HYDRAULIC SYSTEMS

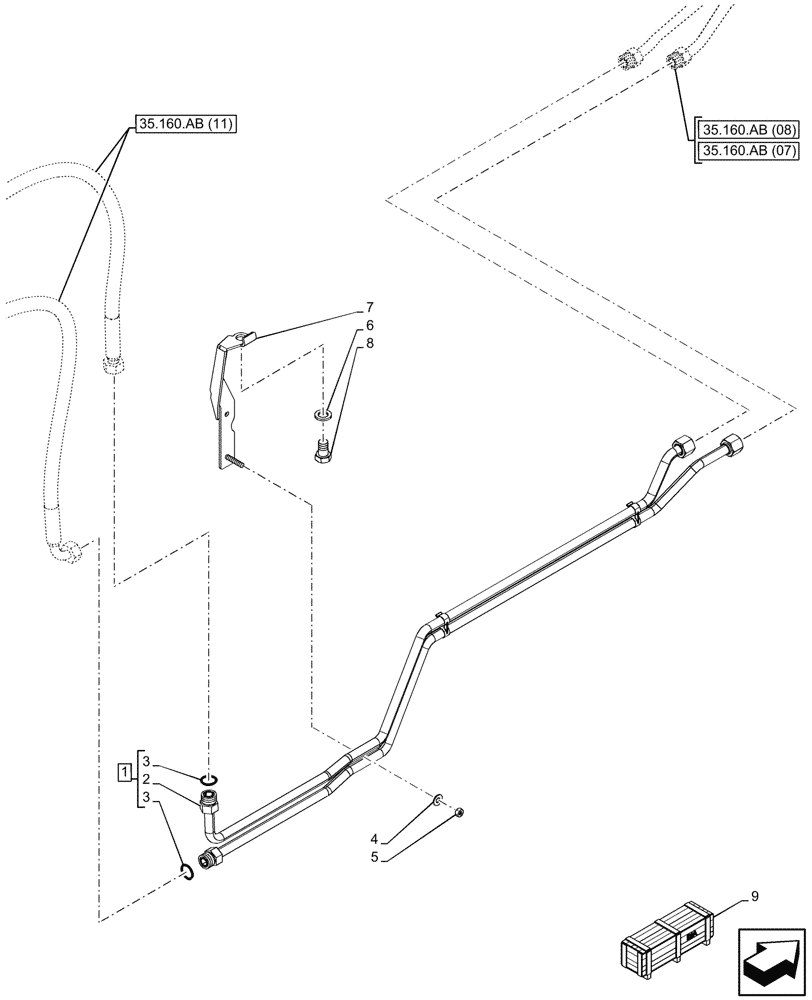

Схема запчастей Case IH MAXXUM 135 - (35.160.AB[12]) - VAR - 758473 - 3 POINT HITCH, FRONT, HYD. LINE (35) - HYDRAULIC SYSTEMS
35.160.ab (07)
8
7
6
1
3
4
5
3
2
9
35.160.ab (11)
35.160.ab (08)

Артикул

Название

Примечание

Количество

1

47825608

PIPE

from Rear Remote Control Valve to Front Hydraulic Power Lift, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

5

16100814

NUT,M8, Cl 8, DAC

1шт.

6

86588503

WASHER,17mm ID x 28mm OD x 3mm Thk

1шт.

7

47670675

BRACKET

1шт.

8

374888

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

1шт.

9

710063124

DIA KIT, TRACTOR

Front Linkage for Supersteer Axle, W/O PTO, W/O Auxiliar Coupler, Incl 1 - 8

1шт.

Valid for New Holland Models

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 11
