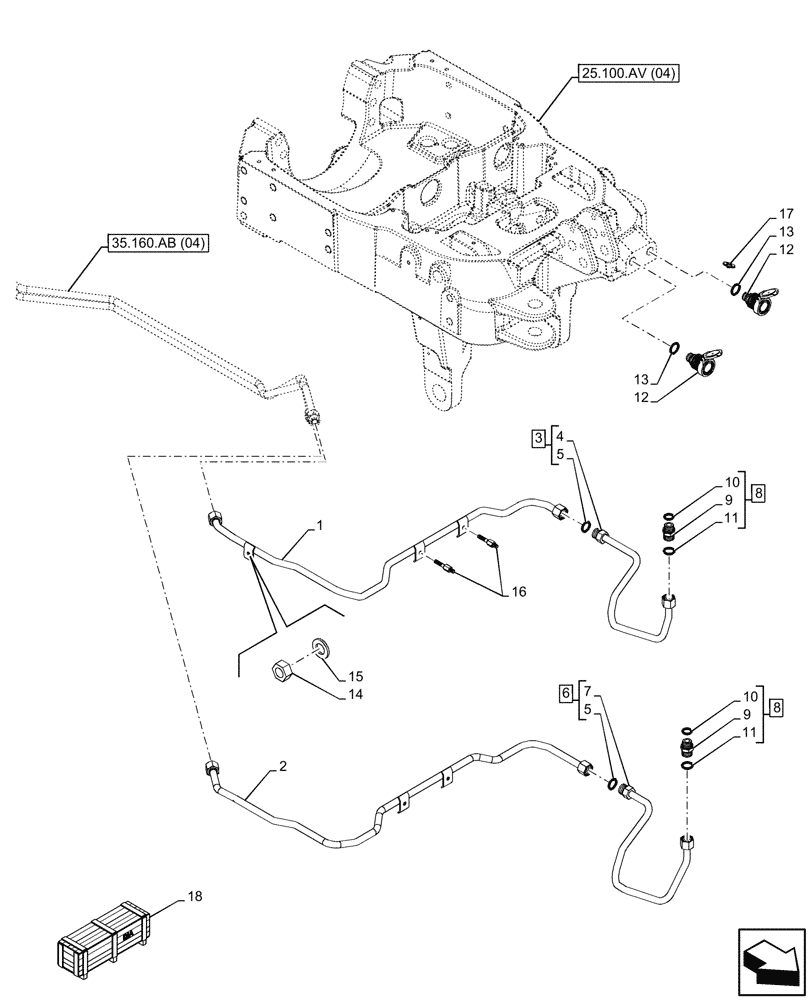

Запчасти Case IH MAXXUM 135 (35.160.AB[05A]) - VAR - 342392, 758544 - 3 POINT HITCH, FRONT, HYD. LINE - BEGIN YR 16-FEB-2015 (35) - HYDRAULIC SYSTEMS

1

47826057

PIPE

Front Aux Coupler

1шт.

2

47825653

PIPE

Front Aux Coupler

1шт.

3

47702307

PIPE

ASSY, LH, to Aux A Coupler, Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Pipe, Incl in 3

1шт.

5

9992096

PUSH BUTTON

2шт.

6

47702309

PIPE

ASSY, LH, to Aux B Coupler, Incl 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Pipe, Incl in 6

1шт.

8

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 9, 10 (Qty 1), 11 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

10

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

11

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

87301571

QUICK MALE COUPLING,M22 x 1.5

2шт.

13

11270860

SEAL,22.2mm ID x 26.9mm OD x 1.5mm Thk

2шт.

14

9706690

NUT,M8 x 1.25, Cl 8

3шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

16

47826512

STUD

1шт.

17

87731144

DISC,20mm D

Black Plus

1шт.

17

87731145

DISC,20mm D

Black Minus

1шт.

18

718036024

DIA KIT, TRACTOR

2 Front Mounted Hydraulic Coupler, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
