Запчасти Case IH MAXXUM 135 (35.160.AB[04]) - VAR - 342392, 758544 - 3 POINT HITCH, FRONT, HYD. LINE (35) - HYDRAULIC SYSTEMS

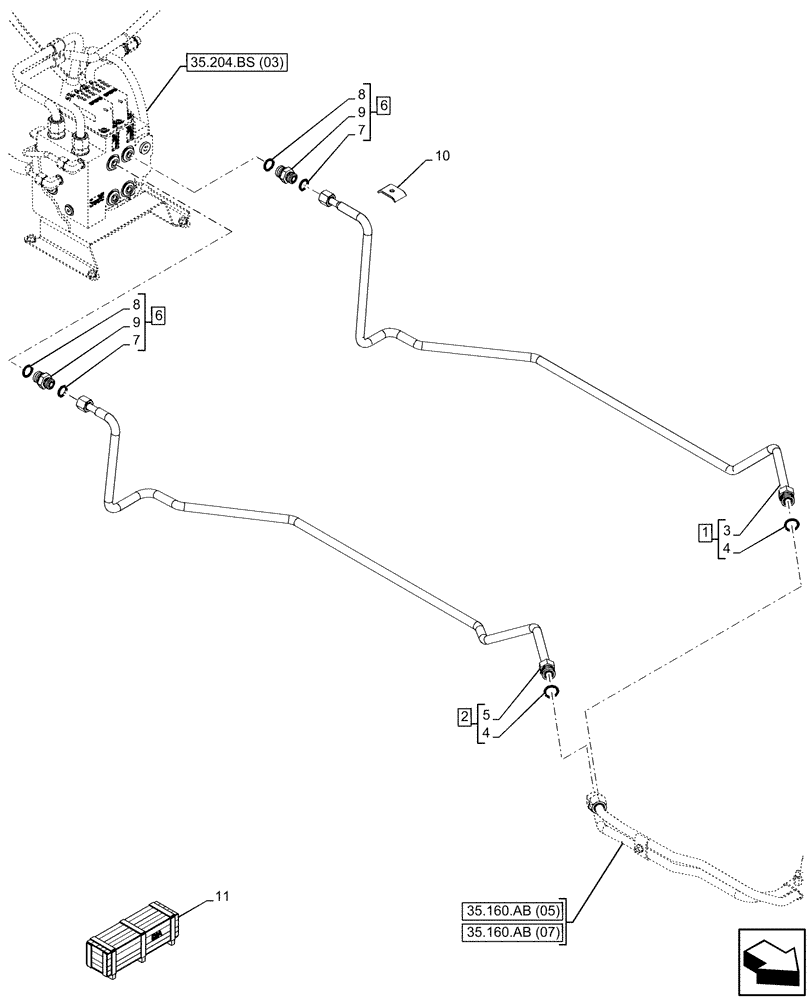

Схема запчастей Case IH MAXXUM 135 - (35.160.AB[04]) - VAR - 342392, 758544 - 3 POINT HITCH, FRONT, HYD. LINE (35) - HYDRAULIC SYSTEMS
35.204.bs (03)
1
5
4
6
8
6
2
7
11
10
4
9
8
9
7
3
35.160.ab (07)
35.160.ab (05)

Артикул

Название

Примечание

Количество

1

47630990

PIPE

ASSY, from Front Hydraulic Power Lift to Electronic Mid Mount Valve, Incl 3, 4 (Qty 1)

1шт.

2

47630992

PIPE

ASSY, from Front Hydraulic Power Lift to Electronic Mid Mount Valve, Incl 4 (Qty 1), 5

1шт.

3

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.

6

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 9 (Qty 1)

2шт.

7

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

2шт.

10

47057074

CLAMP,48.6mm x 30mm

1шт.

11

718036024

DIA KIT, TRACTOR

2 Front Mounted Hydraulic Coupler, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 12
