Запчасти Case IH MAXXUM 135 (35.124.AD[02]) - VAR - 758454 - 3 POINT HITCH, REAR, W/ HYDRAULIC TOP LINK, COMPONENTS (35) - HYDRAULIC SYSTEMS

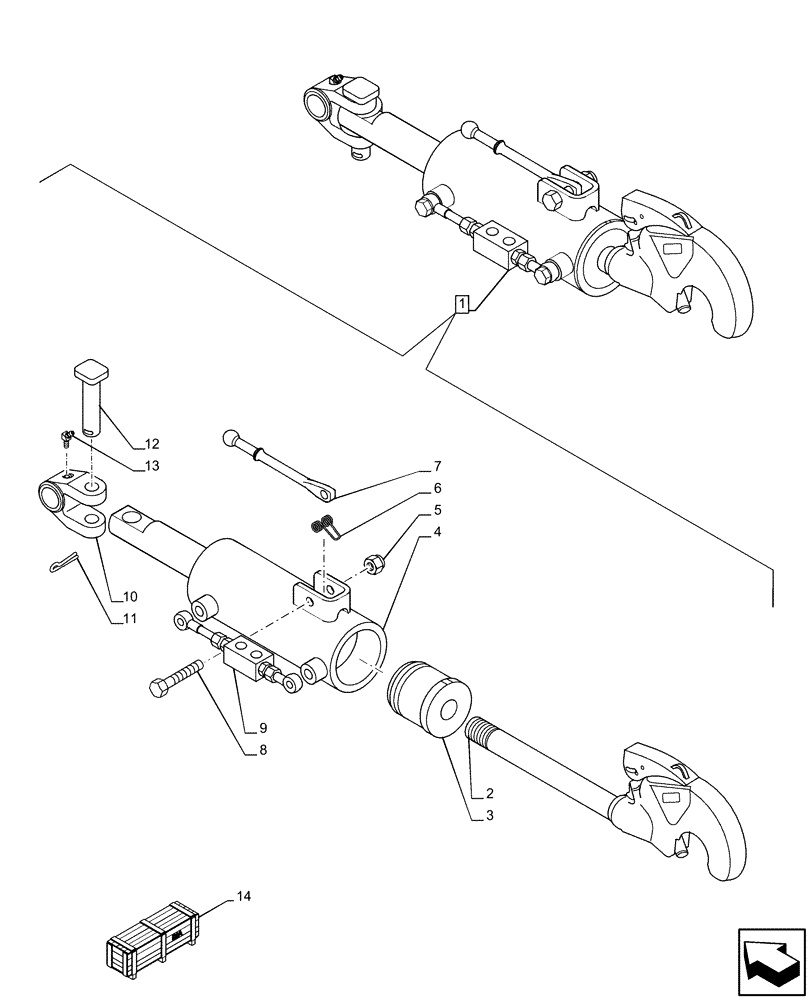

Схема запчастей Case IH MAXXUM 135 - (35.124.AD[02]) - VAR - 758454 - 3 POINT HITCH, REAR, W/ HYDRAULIC TOP LINK, COMPONENTS (35) - HYDRAULIC SYSTEMS
12
5
1
3
13
6
10
11
14
2
8
9
4
7

Артикул

Название

Примечание

Количество

1

84517023

UPPER LINK

ASSY, Incl 2 - 13

1шт.

2

84584519

HYD CYL SLEEVE

1шт.

3

NSS

NOT SOLD SEPARAT

Head, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

5

412126

NUT,M12 x 1.75

1шт.

6

47134489

SPRING

1шт.

7

5172394

LEVER

1шт.

8

350460

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

1шт.

9

84584614

VALVE,Double Acting, 40mm Rod, 175mm Stroke

1шт.

10

5161787

YOKE,28mm D x 28mm D

1шт.

11

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

12

5161789

PIN,34mm OD x 91mm L

1шт.

13

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

14

719790034

DIA KIT, TRACTOR

Hydraulic Adjust Top Link, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 15
