Запчасти Case IH MAXXUM 135 (35.116.AH[02]) - VAR - 743811 - 3 POINT HITCH, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

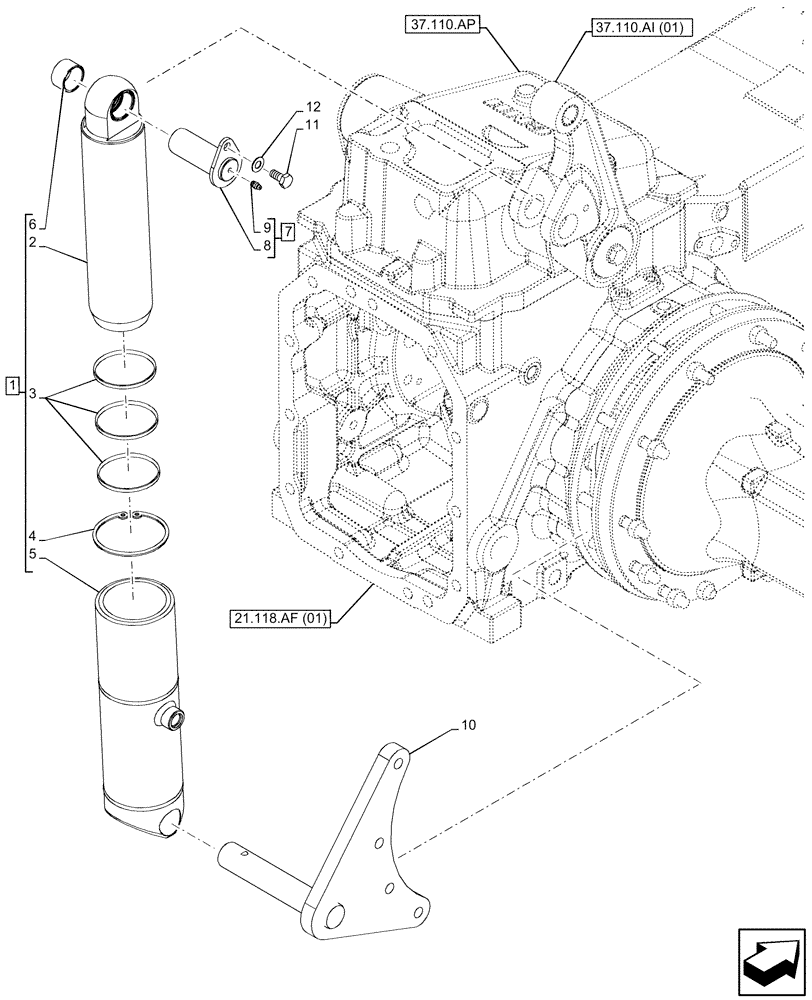

Схема запчастей Case IH MAXXUM 135 - (35.116.AH[02]) - VAR - 743811 - 3 POINT HITCH, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
37.110.ai (01)
9
5
3
6
8
11
2
4
10
7
1
12
21.118.af (01)
37.110.ap

Артикул

Название

Примечание

Количество

1

87306504

HYDRAULIC CYLINDER,90mm Rod, 177mm Stroke

ASSY, Incl 2 - 6

1шт.

2

87309024

PISTON ROD

1шт.

3

47134493

SEAL KIT

Hydraulic Cylinder

1шт.

4

87309025

CIRCLIP

1шт.

5

NSS

NOT SOLD SEPARAT

Cylinder Body, Incl in 1

1шт.

6

5198328

BUSHING

1шт.

7

5190967

PIN,34.7mm OD x 96mm L

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Pin, Incl in 7

1шт.

9

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

10

5191004

SUPPORT

LH, Lift Cylinder

1шт.

10

5191006

SUPPORT

RH, Lift Cylinder

1шт.

11

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

1шт.

12

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

Выбрано товаров: 13
