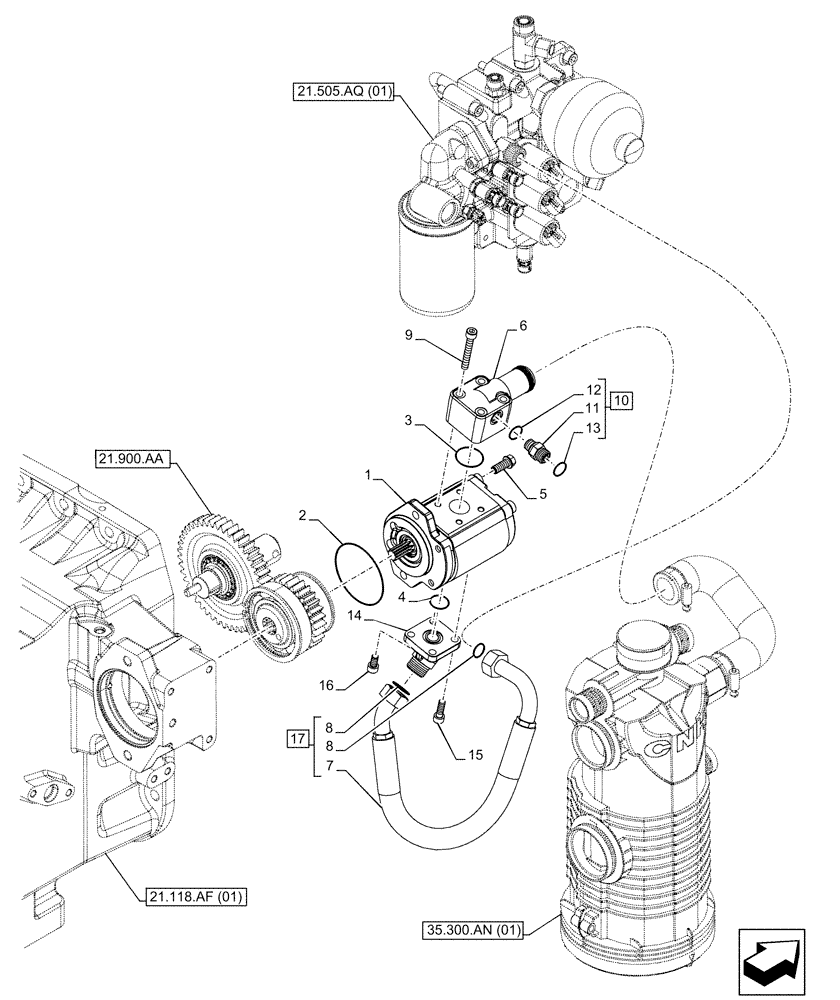

Запчасти Case IH MAXXUM 135 (35.104.AA) - VAR - 391223, 758538, 758539 - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

84355757

HYDRAULIC PUMP,21.95 CC

1шт.

2

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

3

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

4

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

5

47450523

SCREW

2шт.

6

84466463

FLANGE

1шт.

7

NSS

NOT SOLD SEPARAT

Hose, Incl in 17

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

14302221

HEX SOC SCREW,M8 x 55mm, Cl 8.8

4шт.

10

84466553

HYD CONNECTOR

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

47494052

FLANGE

1шт.

15

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

3шт.

16

14306231

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

17

47494050

HYDRAULIC HOSE,16mm ID x 472mm L

ASSY, Supply to Hydraulic Pump, 16mm ID x 472mm, Incl 7, 8

1шт.
