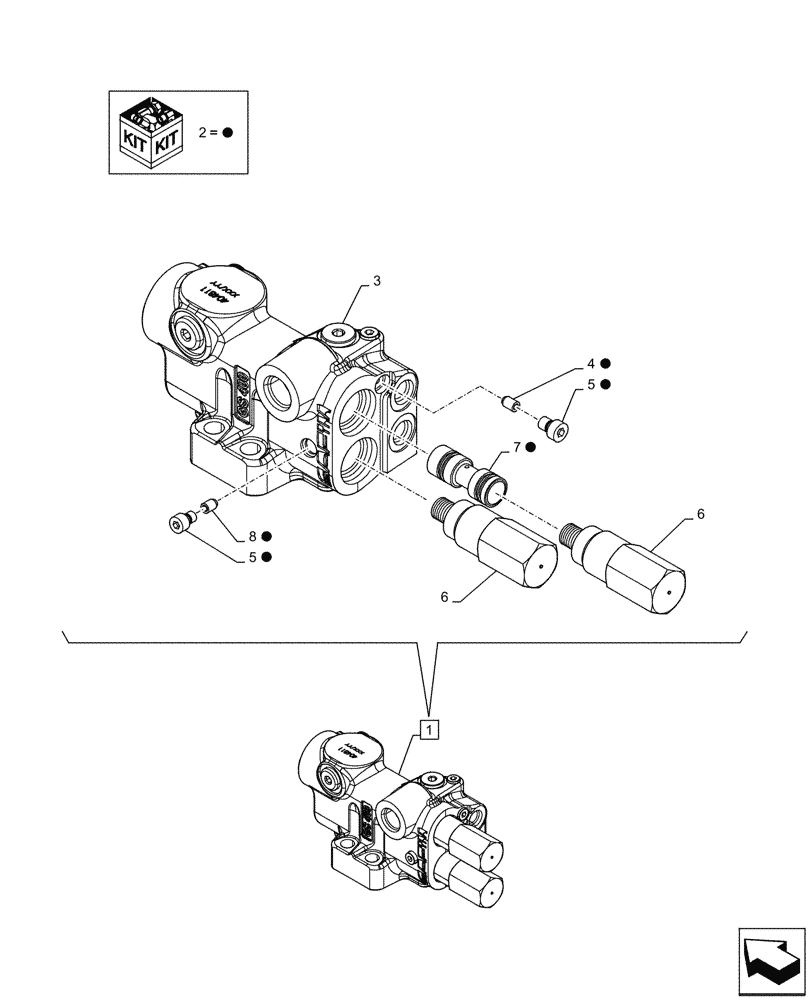

Запчасти Case IH MAXXUM 135 (35.100.AZ[02]) - VAR - 391223, 758538 - PRIORITY VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84575181

VALVE

ASSY, Incl 2 - 8

1шт.

2

47867637

SERVICE KIT

Incl 4, 5, 7, 8

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Orifice, Black, I2=0.8mm, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

M6 Plug, Incl in 2

2шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

7

NSS

NOT SOLD SEPARAT

Steering Spool, I1=0.7mm, I3=0.8mm, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Orifice, Yellow, M2=0.7mm, Incl in 2

1шт.
