(33.224.BC [03]) - VAR - 758447 - PNEUMATIC TRAILER BRAKE, VALVE

Запчасти Case IH MAXXUM 135 (33.224.BC [03]) - VAR - 758447 - PNEUMATIC TRAILER BRAKE, VALVE (33) - BRAKES & CONTROLS

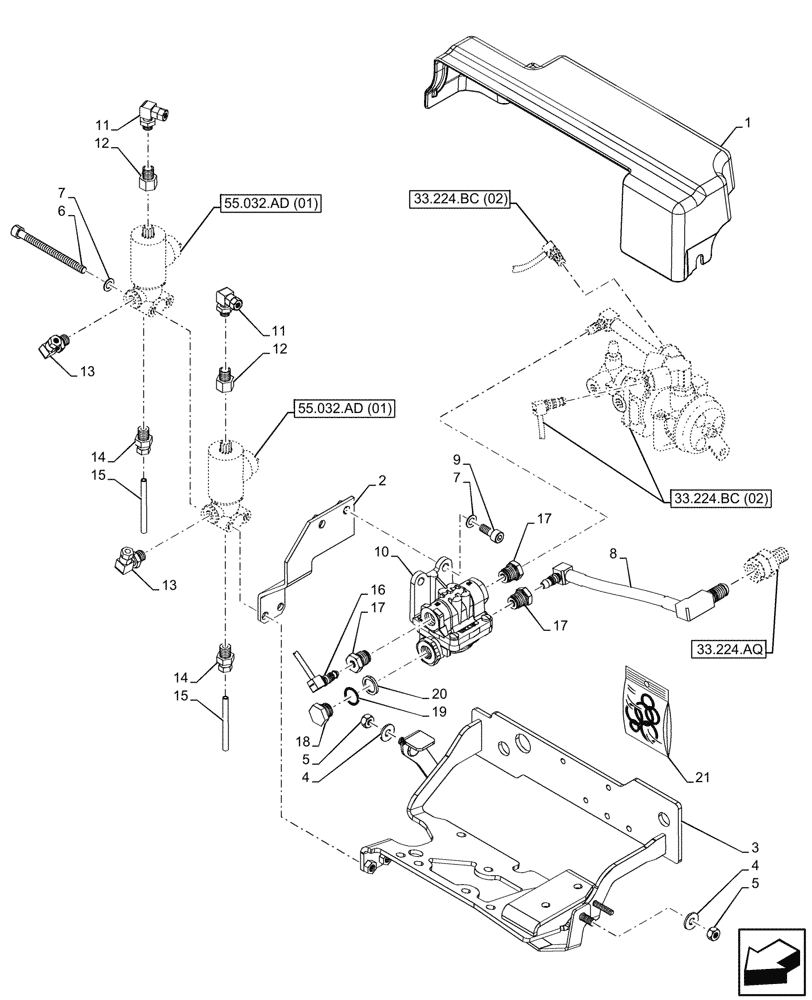

Схема запчастей Case IH MAXXUM 135 - (33.224.BC [03]) - VAR - 758447 - PNEUMATIC TRAILER BRAKE, VALVE (33) - BRAKES & CONTROLS
33.224.bc (02)
8
17
12
17
15
15
14
3
17
10
11
4
1
13
6
7
13
5
21
7
5
12
9
14
16
19
20
18
11
2
4
55.032.ad (01)
55.032.ad (01)
33.224.aq
33.224.bc (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47695618

COVER

1шт.

2

84143167

SUPPORT

1шт.

3

47667666

SUPPORT

1шт.

4

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

14047317

NUT,M8 x 1.25

2шт.

6

14302124

HEX SOC SCREW,M8 x 1.25 x 100mm, Cl 8.8

2шт.

7

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

8

84157670

FLEXIBLE HOSE,12mm ID x 164mm, MAT 3012

QRV to Coupler, 164mm

1шт.

9

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

84157669

VALVE

1шт.

11

87678122

HYD CONNECTOR,M10 x 1

2шт.

12

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

13

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

2шт.

14

82006828

ADAPTER

2шт.

15

82019793

HOSE,6.00mm OD x 70.00mm

2шт.

16

47610083

TUBE

Air, 246mm

1шт.

17

87588079

HYD CONNECTOR,M16 x 1.5

3шт.

18

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

19

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

20

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

21

47980523

SEAL KIT

Pneumatic Trailer Brake Valve

1шт.
