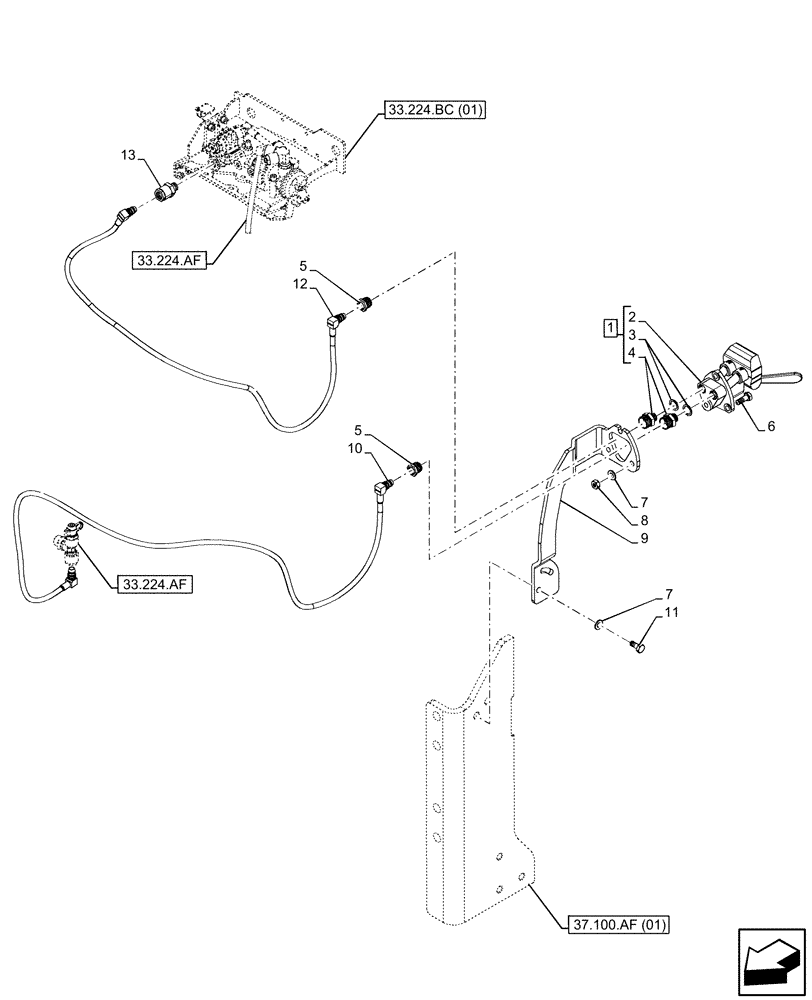

Запчасти Case IH MAXXUM 135 (33.224.AQ [03]) - VAR - 758448 - PNEUMATIC TRAILER BRAKE, LINES (33) - BRAKES & CONTROLS

1

47971522

COUPLING

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Coupling, Incl in 1

1шт.

3

87692948

WASHER,18.0mm ID x 25mm OD x 1.5mm Thk, Aluminum

2шт.

4

47971478

HYD CONNECTOR

2шт.

5

82034157

ADAPTER

3шт.

6

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

5шт.

8

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

9

47620067

BRACKET

1шт.

10

87337371

TUBE,10 mm OD x 1820 mm L

1шт.

11

15970731

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

12

87337373

TUBE,10 mm OD x 1320 mm L

1шт.

13

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.
