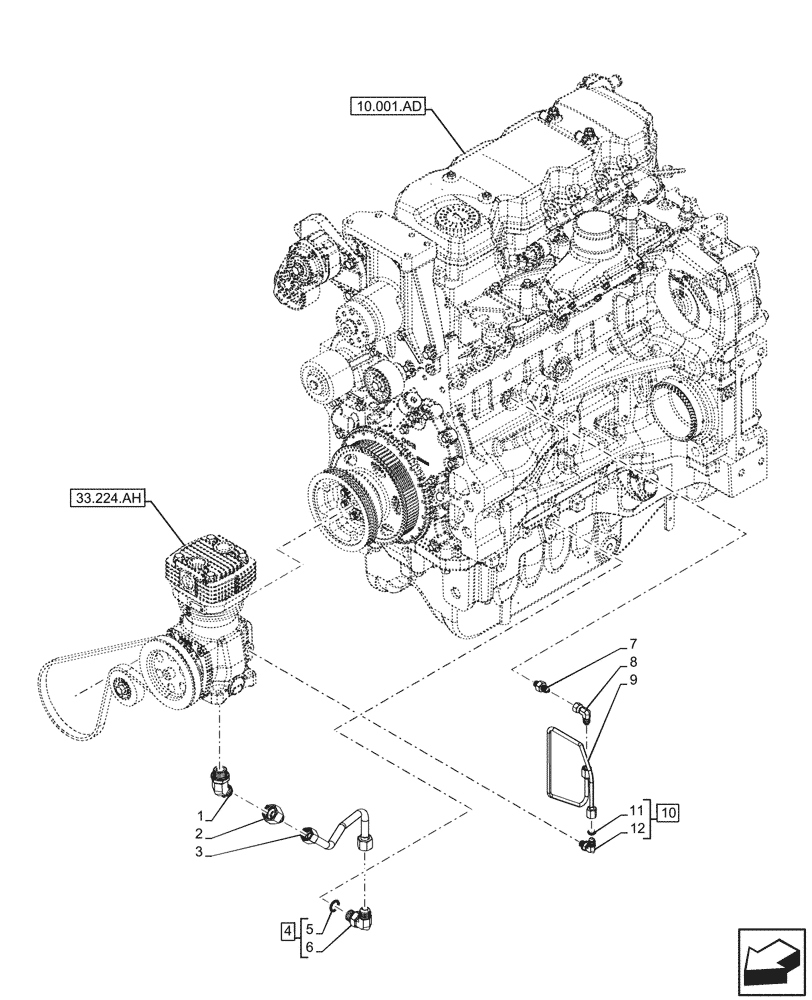

Запчасти Case IH MAXXUM 135 (33.224.AM) - VAR - 758447, 758448, 758449 - PNEUMATIC TRAILER BRAKE, COMPRESSOR, LUBRICATION LINE (33) - BRAKES & CONTROLS

1

87802837

ELBOW,45 Deg, 7/8-14 x M22 x 1.5 ORB

1шт.

2

82006545

ADAPTER,3/4" - 16 NPT x 7/8" - 14

1шт.

3

47633999

PIPE

Compressor Oil Drain

1шт.

4

5157557

ELBOW

ASSY, Incl 5, 6

1шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

7

87802702

HYD CONNECTOR

1шт.

8

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1шт.

9

87802677

TUBE,6.0mm OD x 137.00mm, 50.00mm L

Oil Supply

1шт.

10

82002502

90 ELBOW,7/16"-20 x M10 x 1

ASSY, Incl 11, 12

1шт.

11

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.
