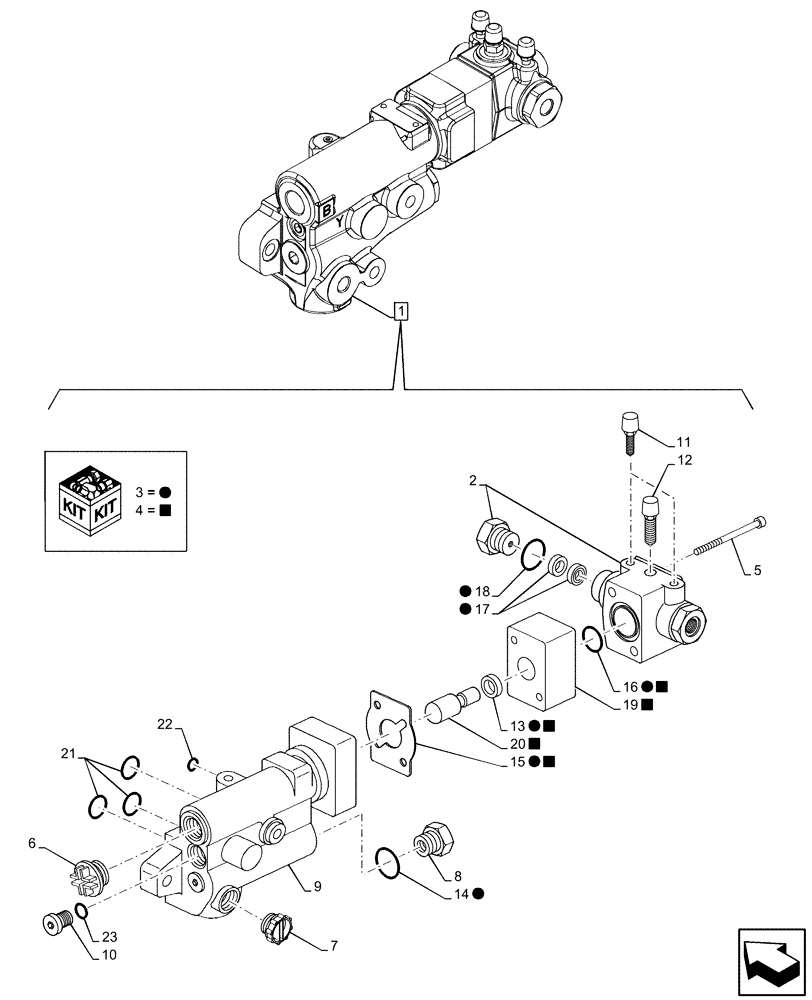

Запчасти Case IH MAXXUM 135 (33.220.AM[03]) - VAR - 744784, 744785 - TRAILER BRAKE VALVE, COMPONENTS (33) - BRAKES & CONTROLS

1

5192069

BRAKE VALVE

ASSY, Incl 2 - 23

1шт.

2

47128437

VALVE

1шт.

3

5190752

SEAL KIT

Incl 13 - 18, 21 - 23

1шт.

4

47129477

SERVICE KIT

Incl 13, 15, 16, 19, 20

1шт.

5

5190750

SCREW

2шт.

6

NSS

NOT SOLD SEPARAT

Stopper, M18 x 1.5, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Screw Plug, M12 x 1.5, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

1шт.

11

81874302

SCREW

2шт.

12

NSS

NOT SOLD SEPARAT

Bleeder Valve, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Grooved Ring, Incl in 3 and Incl in 4

1шт.

14

NSS

NOT SOLD SEPARAT

O-ring, 17 x 2.5, Incl in 3

1шт.

15

NSS

NOT SOLD SEPARAT

Gasket, Incl in 3 and Incl in 4

1шт.

16

NSS

NOT SOLD SEPARAT

O-ring, 25 x 2, Incl in 3 and Incl in 4

1шт.

17

NSS

NOT SOLD SEPARAT

Grooved Ring, Incl in 3

2шт.

18

NSS

NOT SOLD SEPARAT

O-ring, 20.29 x 2.62, Incl in 3

1шт.

19

NSS

NOT SOLD SEPARAT

Intermediate Housing, Incl in 4

1шт.

20

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 4

1шт.

21

NSS

NOT SOLD SEPARAT

O-ring, Incl in 3

3шт.

22

NSS

NOT SOLD SEPARAT

O-ring, Incl in 3

1шт.

23

NSS

NOT SOLD SEPARAT

O-ring, Incl in 3

1шт.
