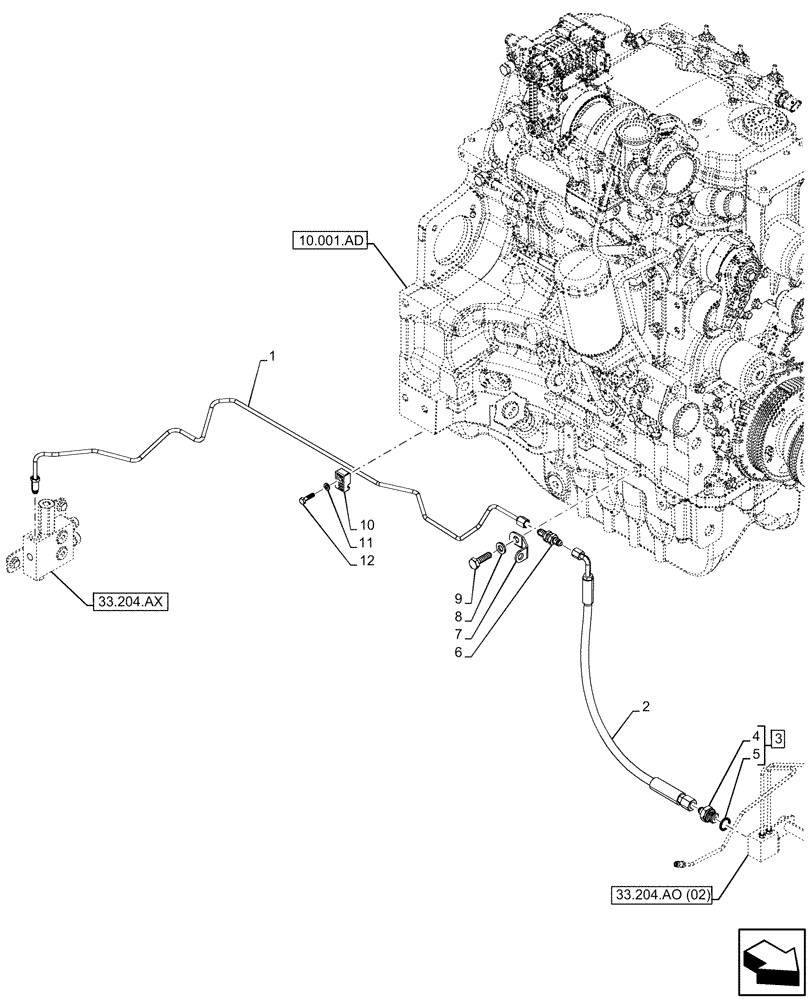

Запчасти Case IH MAXXUM 135 (33.204.AG[02]) - VAR - 758423, 758428 - FRONT, BRAKE LINE (33) - BRAKES & CONTROLS

1

47624617

PIPE

From Brake Valve to Front Axle

1шт.

2

82036030

HOSE,15.88mm ID x 550mm L, SAE 100R2

From Brake Valve to Front Axle

1шт.

3

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

6

82016624

ADAPTER

1шт.

7

47529920

BRACKET

1шт.

8

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

9

11106674

BOLT,Hex, M10 x 35mm, Cl 12.9

1шт.

10

47517275

CLAMP BRACKET

1шт.

11

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

12

10902680

BOLT,Hex, M6 x 25mm

1шт.
