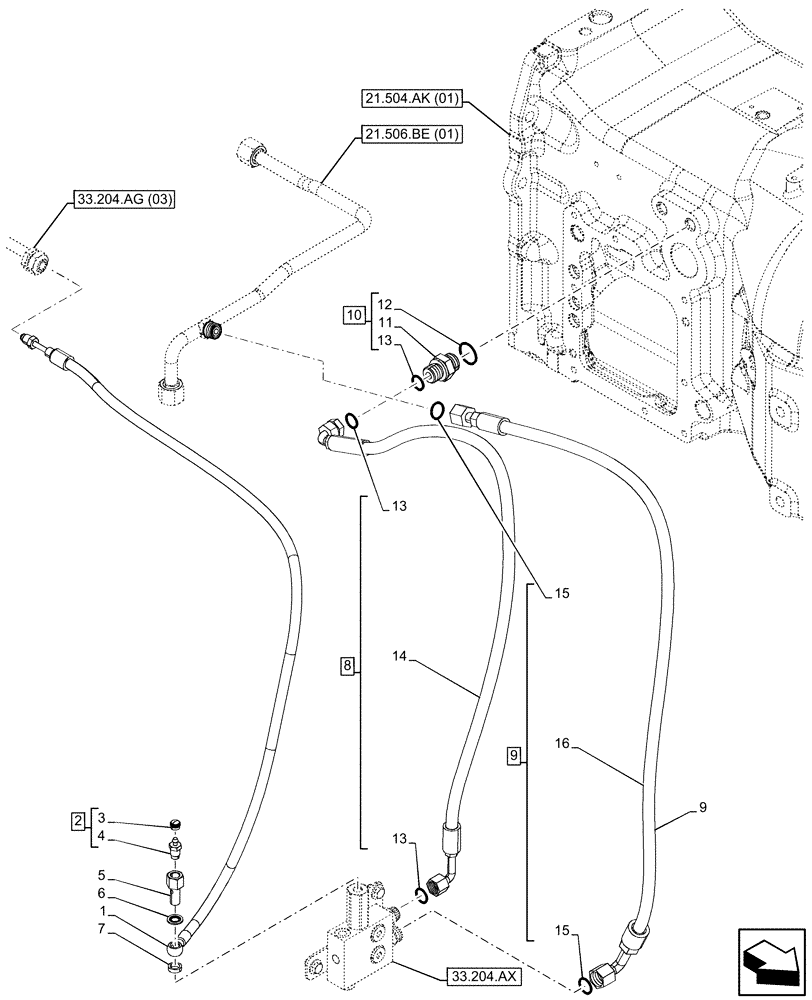

Запчасти Case IH MAXXUM 135 (33.204.AG[01]) - VAR - 758423, 758428 - FRONT, BRAKE LINE (33) - BRAKES & CONTROLS

1

47586956

HOSE,4.8mm ID x 1215mm L, , SAE J517 100R2

From front Brake Valve, 4.8mm ID x 1215mm

1шт.

2

81874592

BLEEDER,M12 x 1 x 15.50mm

ASSY, Incl 3, 4

1шт.

3

81871475

CAP,4.7mm ID x 13mm OD x 10mm L

1шт.

4

81874595

SCREW,Hex, M12 x 1.0 x 15.5mm L

1шт.

5

82036875

BANJO BOLT

1шт.

6

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

7

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

1шт.

8

47586798

HYDRAULIC HOSE,6.40 ID x 925mm L

ASSY, from Front Brake Valve to Transmission Housing, 6.4mm ID x 925mm, Incl 13 (Qty 2), 14

1шт.

9

47587072

HYDRAULIC HOSE,6.40 ID x 1120mm L

ASSY, from Filter Suction Valve to Front Brake Valve, 6.4mm ID x 1120mm, Incl 15, 16

1шт.

10

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 11, 12, 13 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

12

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

14

NSS

NOT SOLD SEPARAT

Hose, Incl in 8

1шт.

15

NSS

NOT SOLD SEPARAT

Hose, Incl in 9

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
