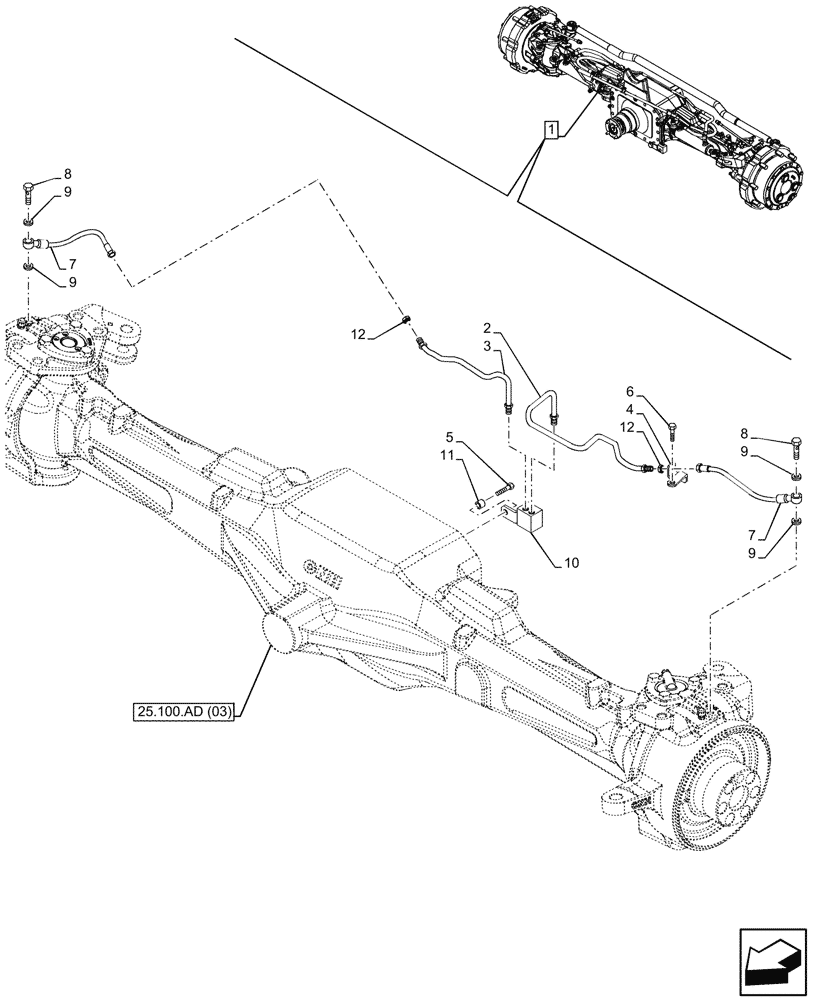

Запчасти Case IH MAXXUM 135 (33.204.AD[04]) - VAR - 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, BRAKE LINE (33) - BRAKES & CONTROLS

1

87745927

LIVE FRONT AXLE

ASSY, Incl 2 - 12

1шт.

See also Axle Components in Figure 25.100.AA (07), 25.100.AD (07), 25.108.AA (07), 25.108.AB (09), 25.108.AG (07), 25.108.AN (07), 33.204.AD (03), 41.216.AN (09), 41.216.AV (09), 55.047.AA (07)

1шт.

2

87588339

PIPE

Front Brake Assy Suspended, LH

1шт.

3

87588316

PIPE

Front Brake Assy Suspended, RH

1шт.

4

87571108

BRACKET

LH

1шт.

5

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

4шт.

10

87351041

BRACKET

1шт.

11

47127963

SPACER

1шт.

12

10718111

THIN NUT,Thin, M16 x1.00mm, 8.00mm High, Cl 04

2шт.
