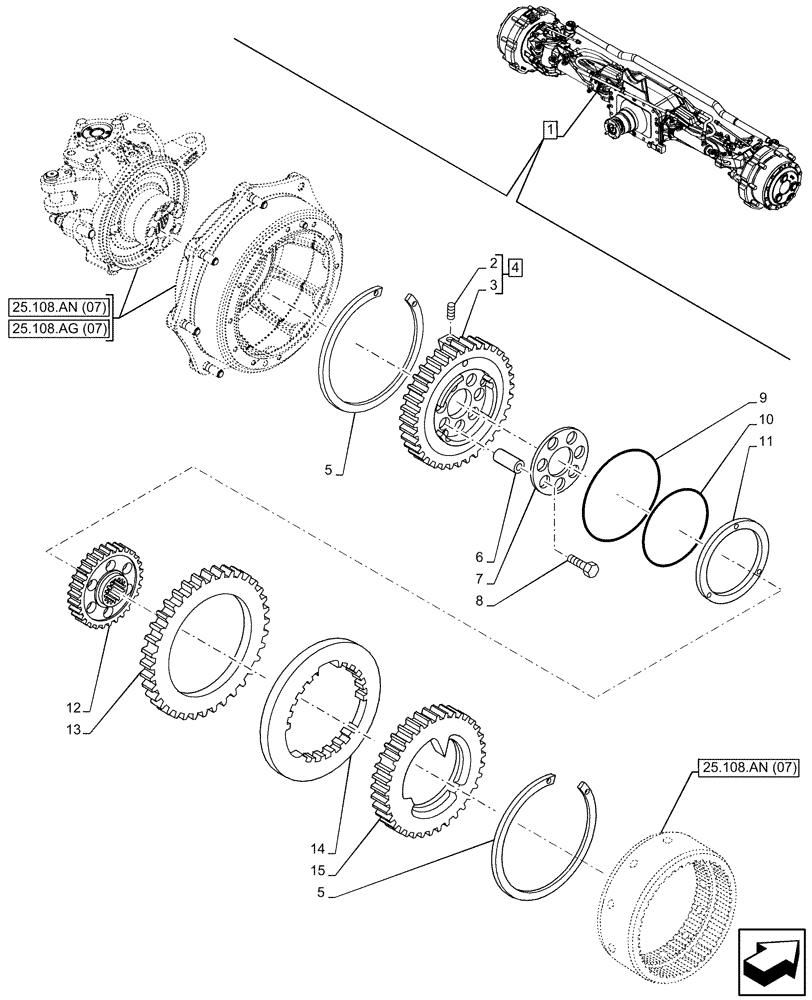

Запчасти Case IH MAXXUM 135 (33.204.AD[03]) - VAR - 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, BRAKE DISC (33) - BRAKES & CONTROLS

1

87745927

LIVE FRONT AXLE

ASSY, Incl 2 - 15

1шт.

See also Axle Components in Figure 25.100.AA (07), 25.100.AD (07), 25.108.AA (07), 25.108.AB (09), 25.108.AG (07), 25.108.AN (07), 33.204.AD (04), 41.216.AN (09), 41.216.AV (09), 55.047.AA (07)

1шт.

2

14326101

PLUG,M8 x 11

M8 x 10

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 4

1шт.

4

87332271

GEAR

ASSY, Incl 2, 3

1шт.

5

87332077

SNAP RING

2шт.

6

5179554

BUSHING,14.5mm ID x 22mm OD x 27.8mm L

7шт.

7

87393540

PLATE

1шт.

8

16331930

BOLT,Hex, M14 x 1.5 x 55mm

7шт.

9

5171919

SEAL,Square, 3.4mm Thk x 193.6mm ID, 80 Duro

1шт.

10

5177912

SEAL,Square, 3.4mm Thk x 143.6mm ID, 80 Duro

1шт.

11

5190528

PISTON

1шт.

12

87332183

HUB

1шт.

13

87608346

NOTCHED DISK

1шт.

14

5175567

BRAKE DISC,213.00mm OD

1шт.

15

87332079

BRAKE DISC

1шт.
