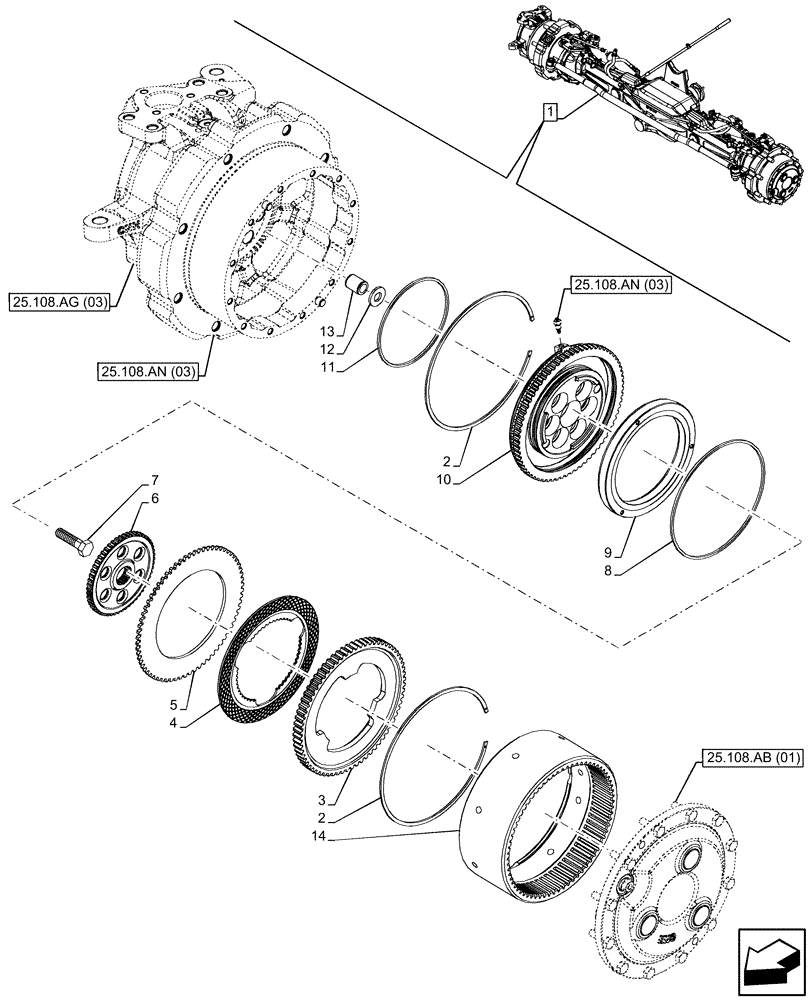

Запчасти Case IH MAXXUM 135 (33.204.AD[01]) - VAR - 758423 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, BRAKE DISC (33) - BRAKES & CONTROLS

1

84181155

LIVE FRONT AXLE

ASSY, Incl 2 - 14

1шт.

See also Axle Components in Figure 25.100.AA (03), 25.100.AD (03), 25.108.AA (03), 25.108.AG (03), 25.108.AN (03), 33.204.AD (02), 41.216.AN (03), 55.047.AA (03)

1шт.

2

5175606

RING

2шт.

3

5181748

WEAR PLATE,68T

1шт.

4

5175567

BRAKE DISC,213.00mm OD

1шт.

5

5171917

BRAKE DISC,150mm ID x 227mm OD x 4.95mm Thk

1шт.

6

5178475

HUB

1шт.

7

16331930

BOLT,Hex, M14 x 1.5 x 55mm

6шт.

8

5171919

SEAL,Square, 3.4mm Thk x 193.6mm ID, 80 Duro

1шт.

9

5190528

PISTON

1шт.

10

5190527

HOUSING

1шт.

11

5177912

SEAL,Square, 3.4mm Thk x 143.6mm ID, 80 Duro

1шт.

12

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

13

5179554

BUSHING,14.5mm ID x 22mm OD x 27.8mm L

6шт.

14

5191771

RING GEAR,248.00mm OD

1шт.
