Запчасти Case IH MAXXUM 135 (31.146.AE) - VAR - 743700, 744790 - FRONT PTO, CLUTCH (31) - IMPLEMENT POWER TAKE OFF

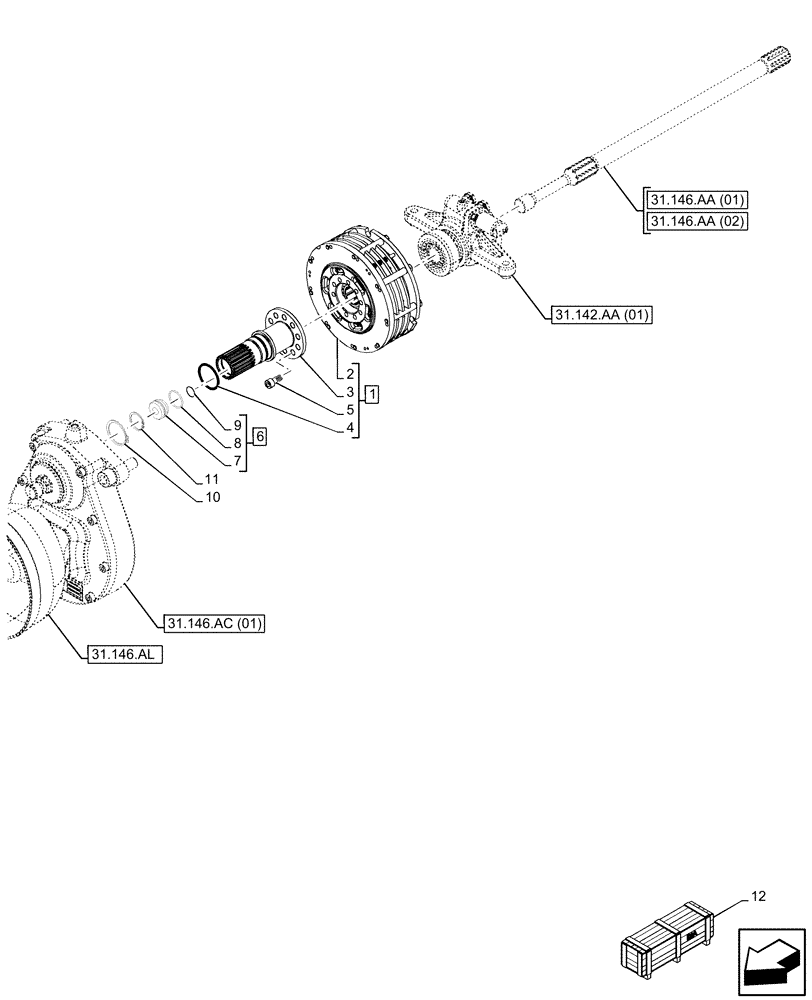

Схема запчастей Case IH MAXXUM 135 - (31.146.AE) - VAR - 743700, 744790 - FRONT PTO, CLUTCH (31) - IMPLEMENT POWER TAKE OFF
31.146.aa (02)
10
1
5
11
3
2
9
4
7
6
12
8
31.146.ac (01)
31.146.aa (01)
31.142.aa (01)
31.146.al

Артикул

Название

Примечание

Количество

1

87315409

PTO CLUTCH

ASSY, Incl 2 - 5

1шт.

2

87308837

PTO CLUTCH,220.5mm OD

1шт.

3

47127442

PTO SHAFT,22T

1шт.

4

14459180

O-RING,45.69mm ID x 2.62"

1шт.

5

13030430

HEX SOC SCREW,M10 x 1.25 x 22mm

10шт.

6

47128748

PLUG

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 7

1шт.

8

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

9

20419380

BALL,12.7mm Dia

1шт.

10

11069276

SNAP RING,M48, Ext

1шт.

11

86625141

SNAP RING,M36, Ext

1шт.

12

718041054

DIA KIT, TRACTOR

Front Power Take-Off W/6 Splines, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

719098114

DIA KIT, TRACTOR

Front Power Take-Off for Hydraulic Power Lift W/6 Splines, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 15
