Запчасти Case IH MAXXUM 135 (31.146.AA[02]) - VAR - 743700, 744790 - FRONT PTO, DRIVE SHAFT, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

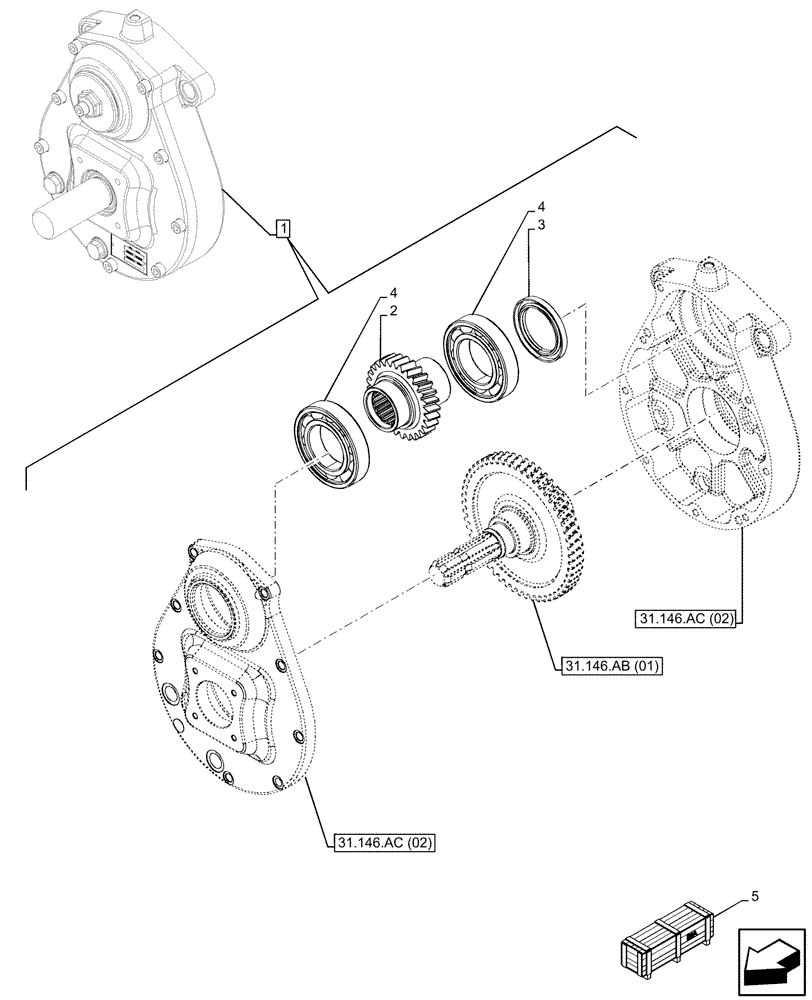

Схема запчастей Case IH MAXXUM 135 - (31.146.AA[02]) - VAR - 743700, 744790 - FRONT PTO, DRIVE SHAFT, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF
31.146.ac (02)
3
4
1
2
5
4
31.146.ab (01)
31.146.ac (02)

Артикул

Название

Примечание

Количество

1

84265034

GEARBOX

ASSY, Incl 2 - 4

1шт.

See also Figure 31.146.AB, 31.146.AC (02)

1шт.

2

87731121

GEAR,22T, 28T

Front PTO, Z 28

1шт.

3

5119540

SEAL,60mm ID x 85mm OD x 8mm Thk

1шт.

4

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

2шт.

5

718041054

DIA KIT, TRACTOR

Front Power Take-Off W/6 Splines, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

719098114

DIA KIT, TRACTOR

Front Power Take-Off for Hydraulic Power Lift W/6 Splines, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 9
